Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      000665
Model:      505A3-CS Ratio:      70.80:1
MO# or S/N      98-069630-01 Alt. S/N
IP Speed      1430 RPM HP rating      250 HP Cat. Rating      603 HP
OP Speed:      20.2 RPM SF / SC      2.41 - SF
Date      3/99 Oil Capacity      64.0
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      1,881,000 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  7.375
Weight      12,000 Lbs. Approx Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
70.80:1

25
736 HP
229 HP
1430
20
603 HP
222 HP
1170
16.5
495 HP
216 HP
870
12.5
369 HP
197 HP
720
10
305 HP
188 HP
580
8.3
246 HP
179 HP
Notes:

Condition: USED SURPLUS
Unit in operation for less than one year.

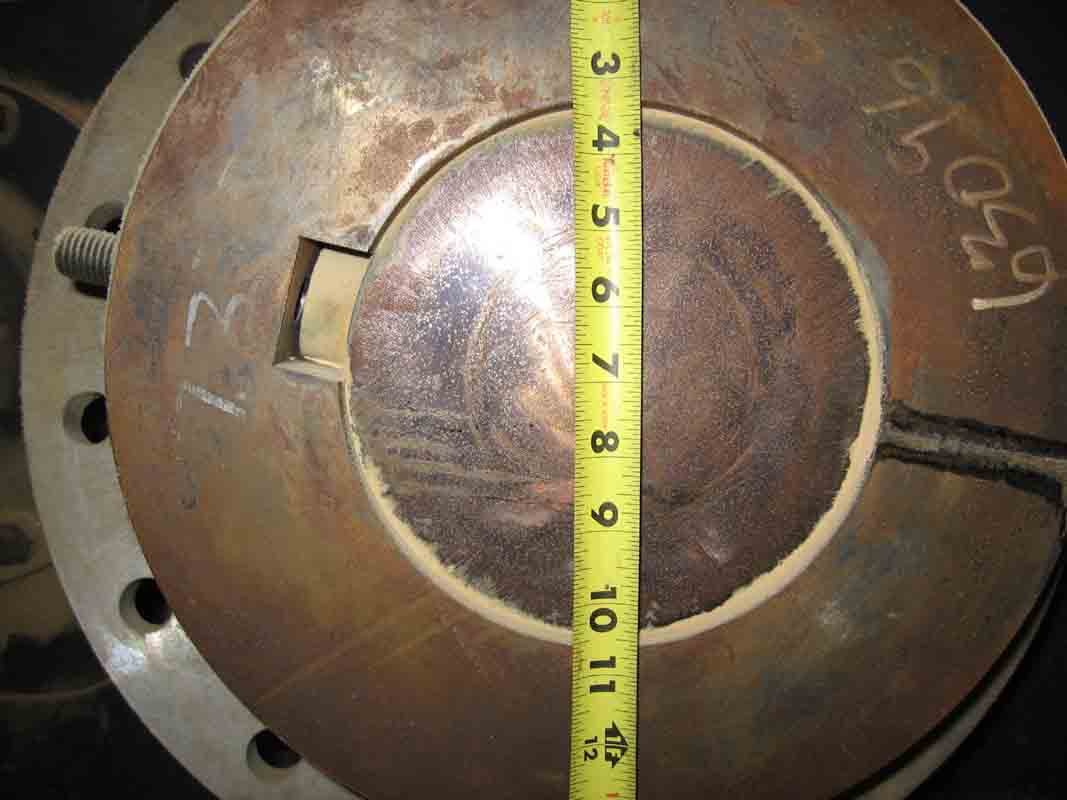

** Special Low Speed Shaft
