- Speed Reducer Data Sheet -

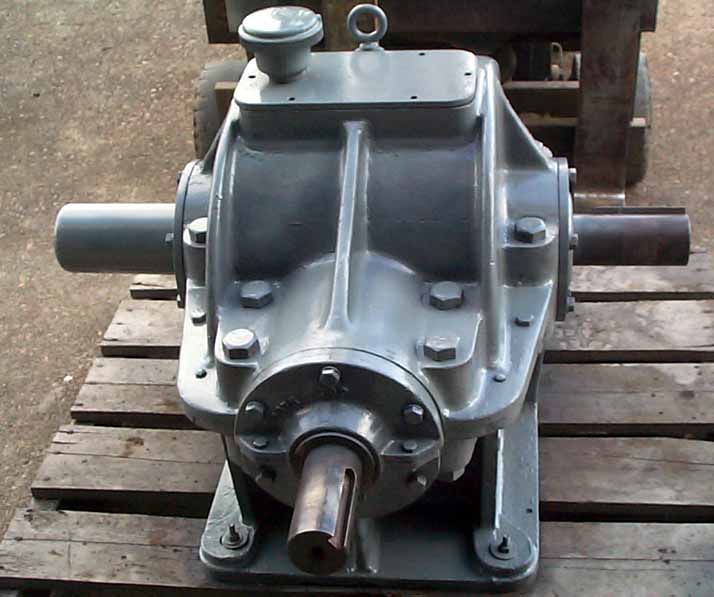

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      000951
Model:      7GHB Ratio:      3.529:1
MO# or S/N      6-260062 Alt. S/N
IP Speed      663.64 RPM HP rating       Cat. Rating
OP Speed:      188 RPM SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      24,600 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  2.875
Weight      900 Lbs Approx Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1170
3.529:1

332
130 HP
870
247
104 HP
720
204
86 HP
580
164
75 HP
Notes:

Condition:
