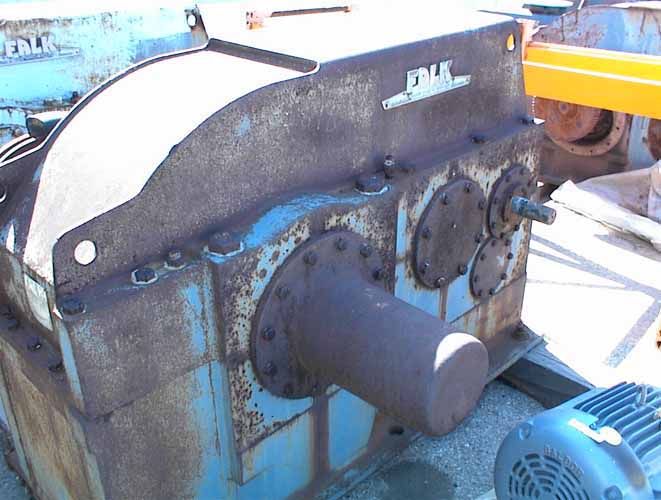

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      001590
Model:      2145Y3-A Ratio:      154.6
MO# or S/N      6-662029-01 Alt. S/N
IP Speed      580 RPM HP rating      25 HP Cat. Rating
OP Speed:      3.75 RPM SF / SC      1.36 SF
Date       Oil Capacity      85
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      546,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  7.250
Weight      7,200 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
154.6

11 RPM
98.2 HP
1430 RPM
9 RPM
80.9 HP
1170 RPM
7.5 RPM
67.2HP
870 RPM
5.5 RPM
50.5 HP
720 RPM
4.5 RPM
42 HP
580 RPM
3.8 RPM
34 HP
Notes:

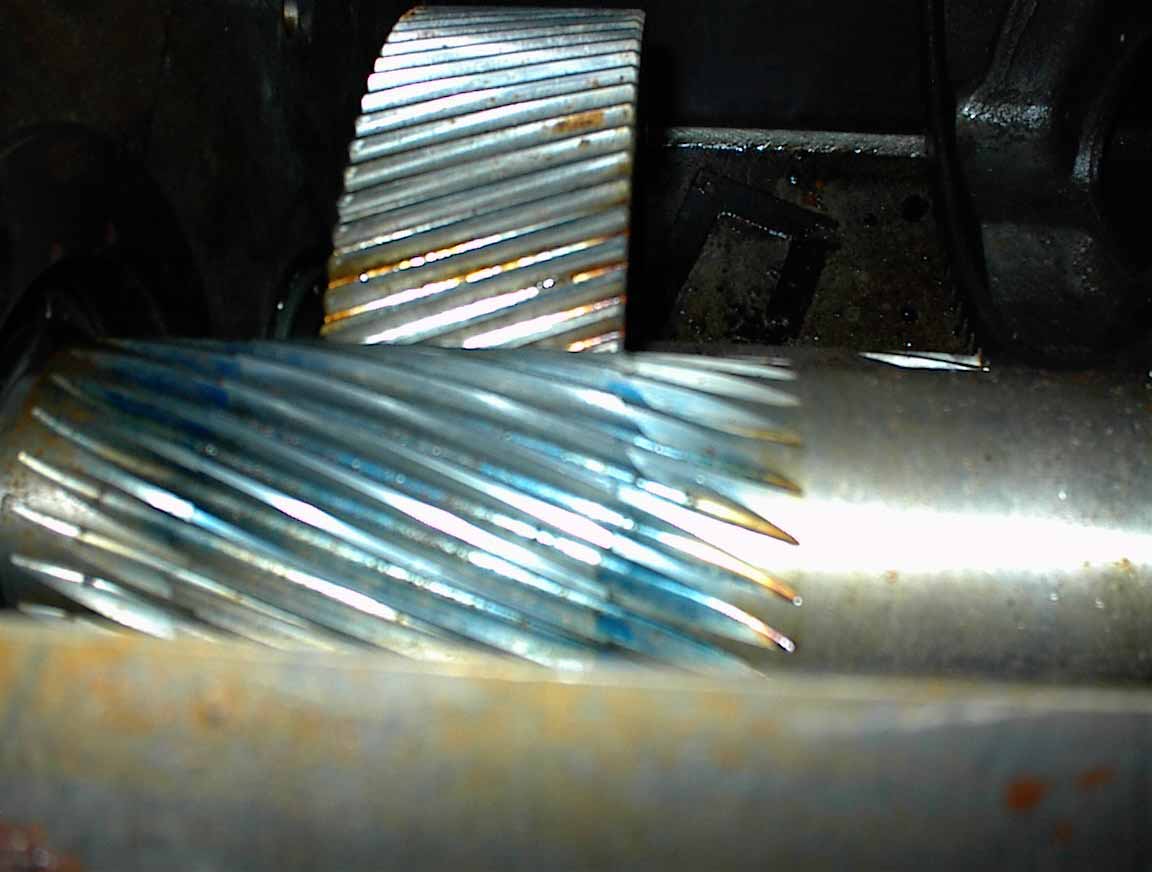

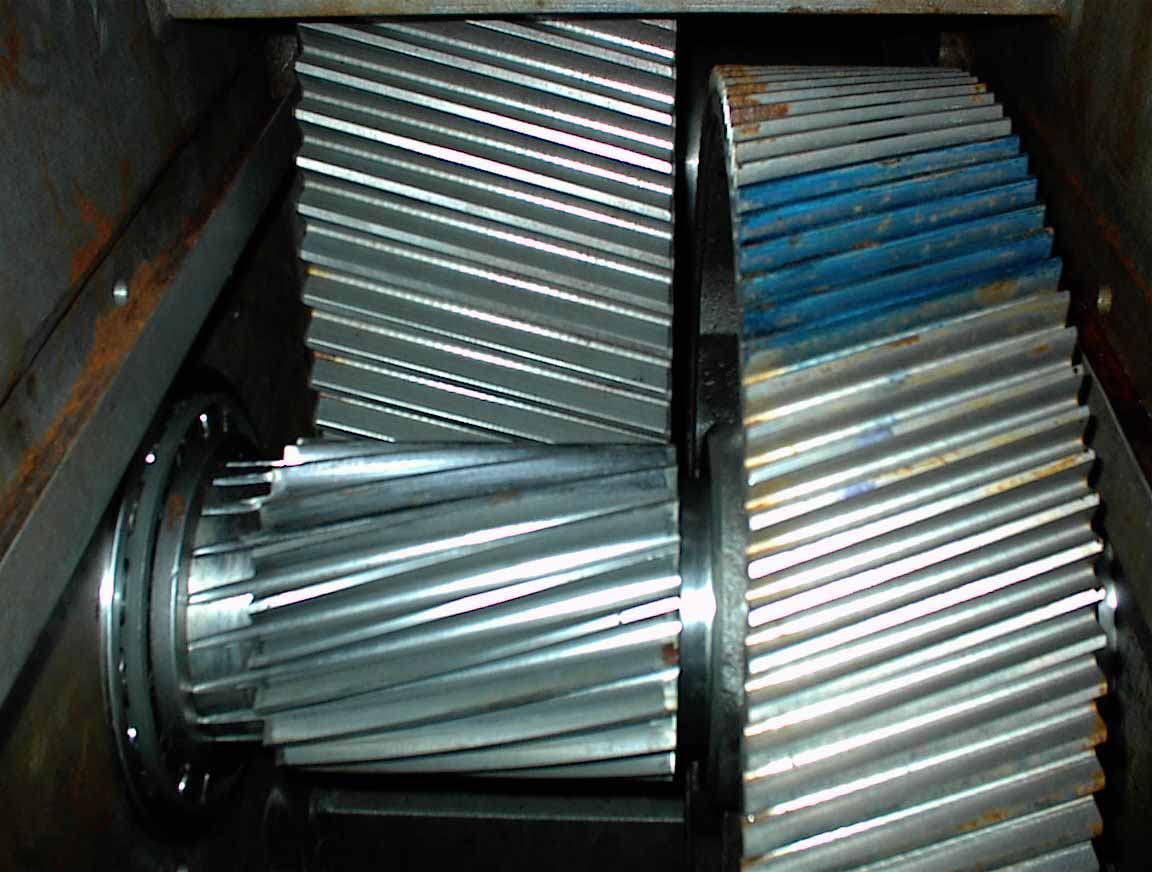

Condition: GEARING IN GOOD CONDITION
