Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Western Our ID No.      001808
Model:      BH 133 Ratio:      33.08:1
MO# or S/N      S/N 152 Alt. S/N      Order No. 5523
IP Speed      1900 RPM HP rating      15 HP Cat. Rating      33 HP
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating       Shaft Diameters High Speed:
Low Speed:
Weight       Assembly
Notes:

Condition: VERY GOOD

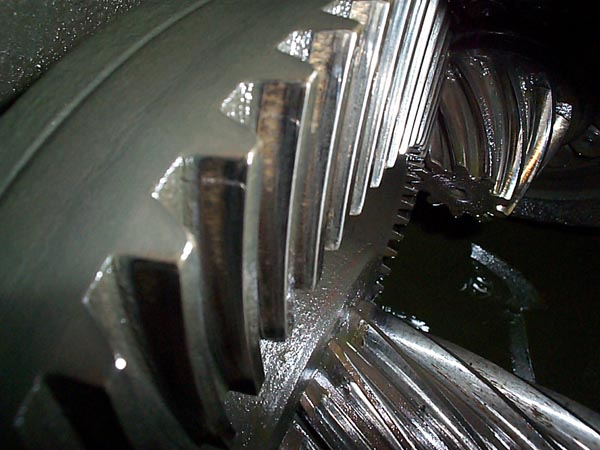

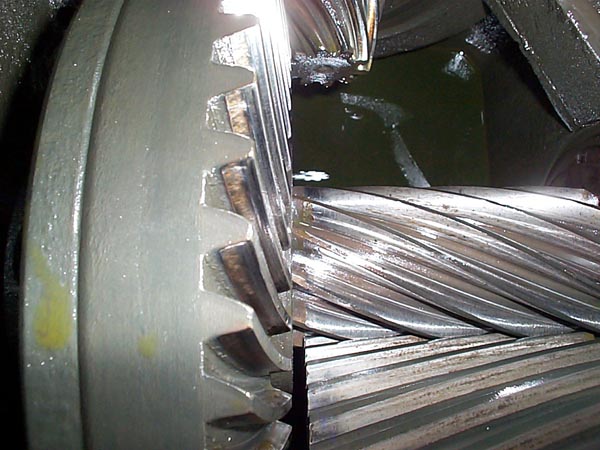

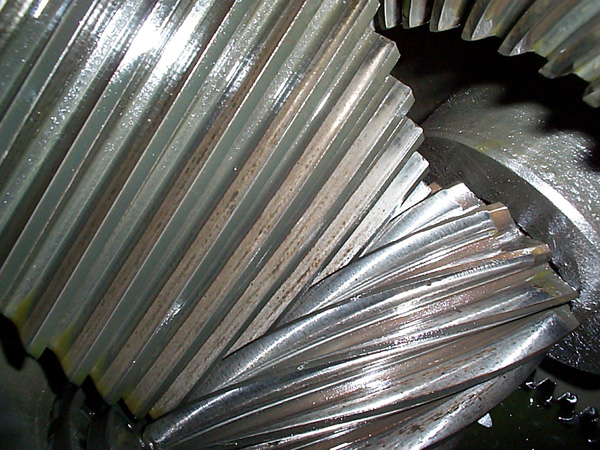

Tooth Count:
High Speed Pinion: 10 Teeth
High Speed Gear: 53 Teeth
Low Speed Pinion: 12 Teeth
Low Speed Gear: 68 Teeth





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
