Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      002051
Model:      2100Y1B Ratio:      2.759:1
MO# or S/N      7-269122-01 Alt. S/N
IP Speed      1775 RPM HP rating      927 HP Cat. Rating      927 HP
OP Speed:      643 RPM SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      105,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2500 Lbs. Approx Assembly      Parallel
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

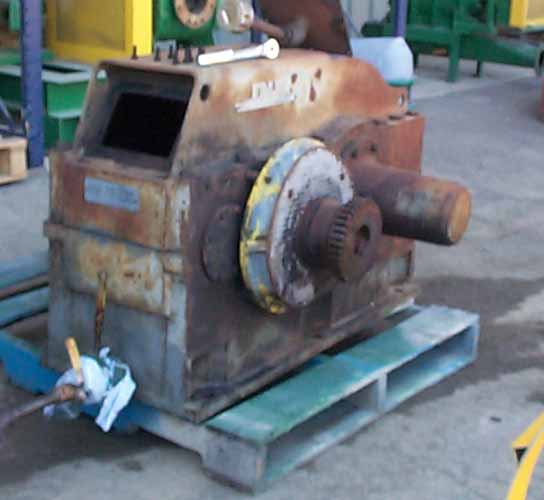

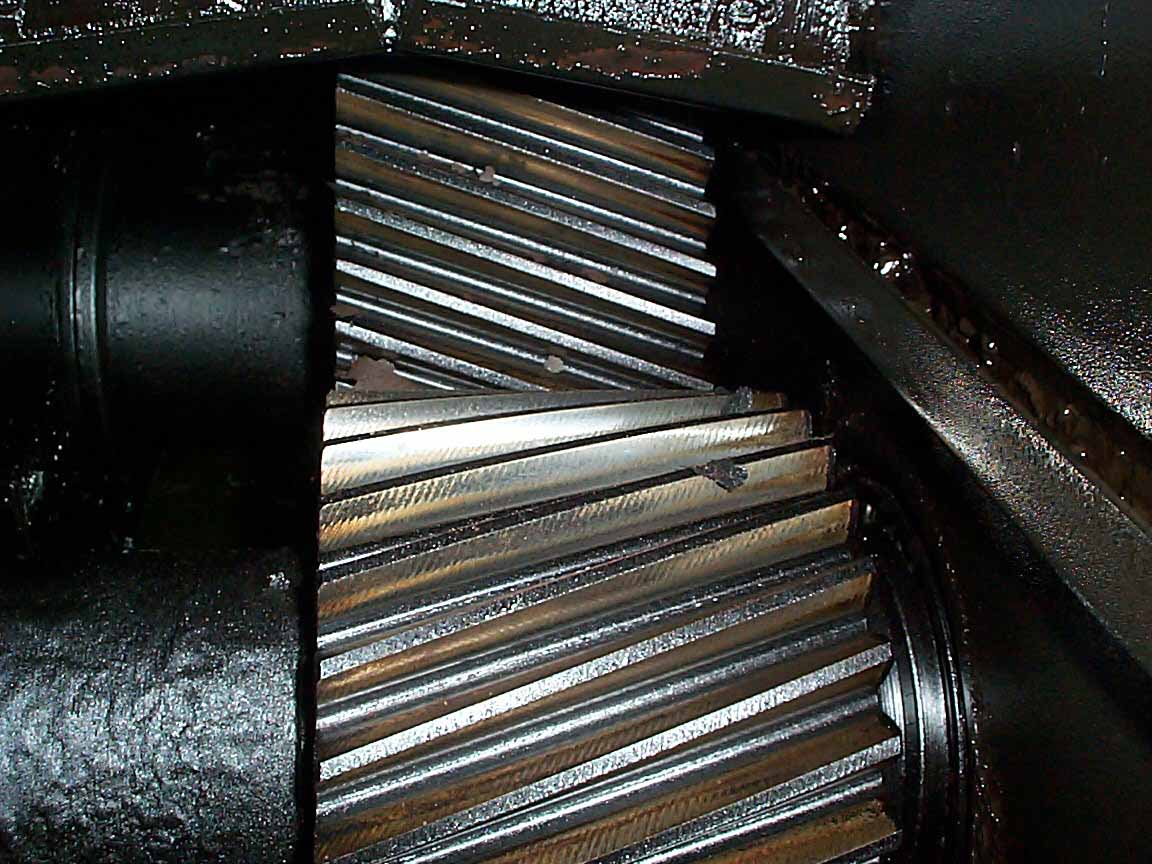

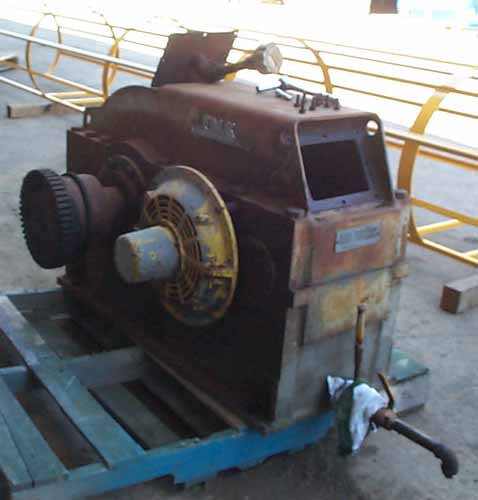

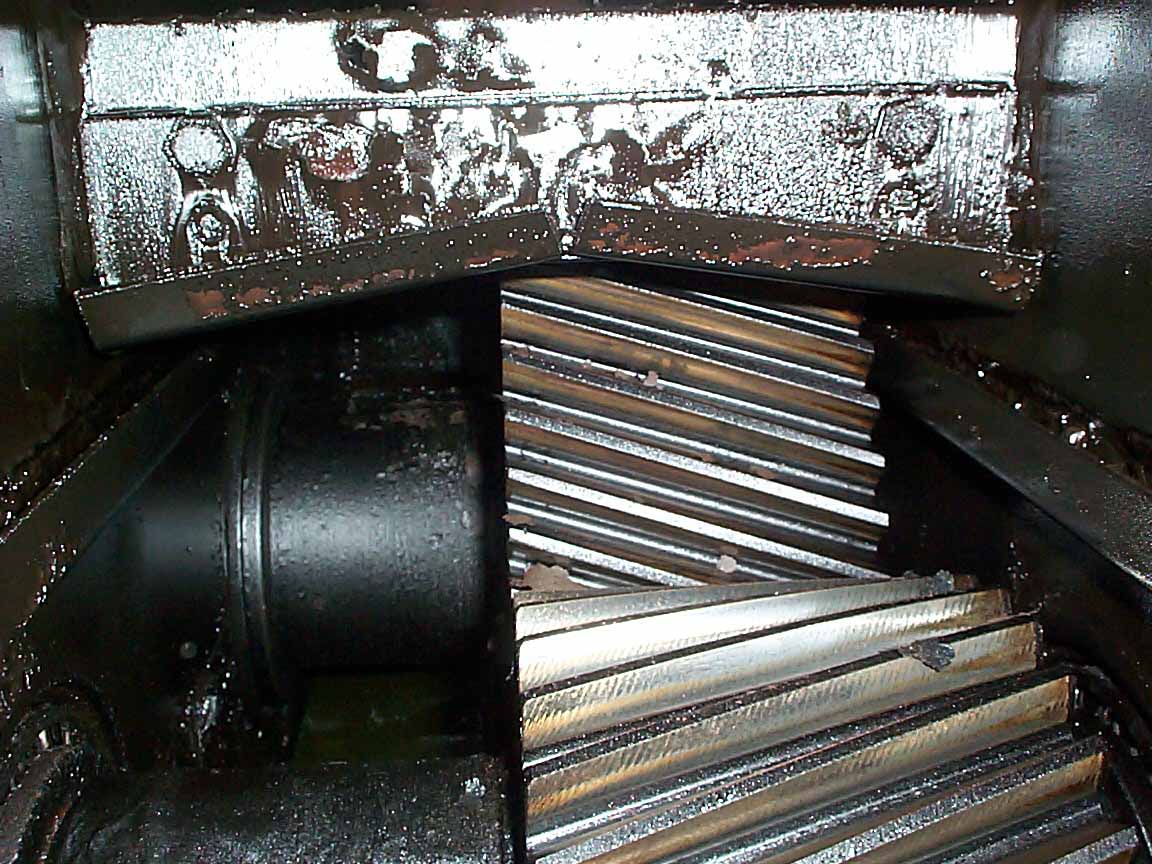

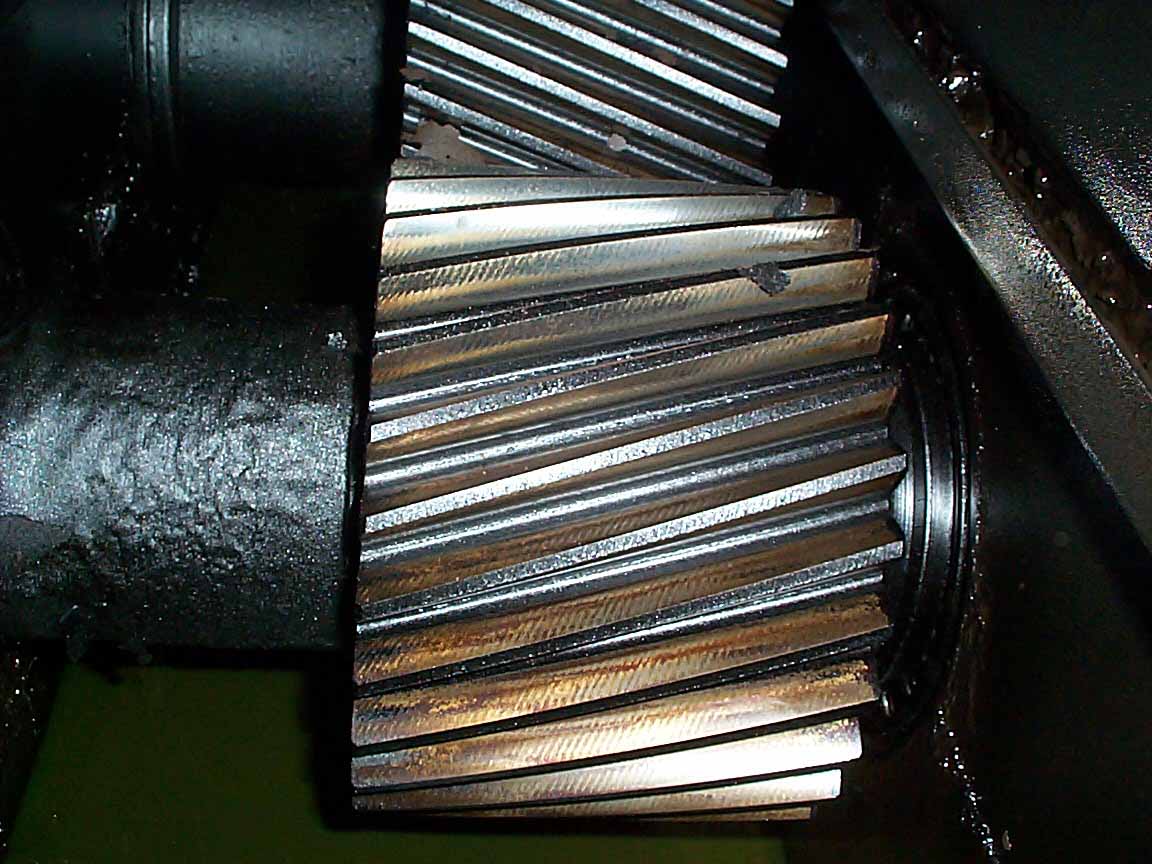

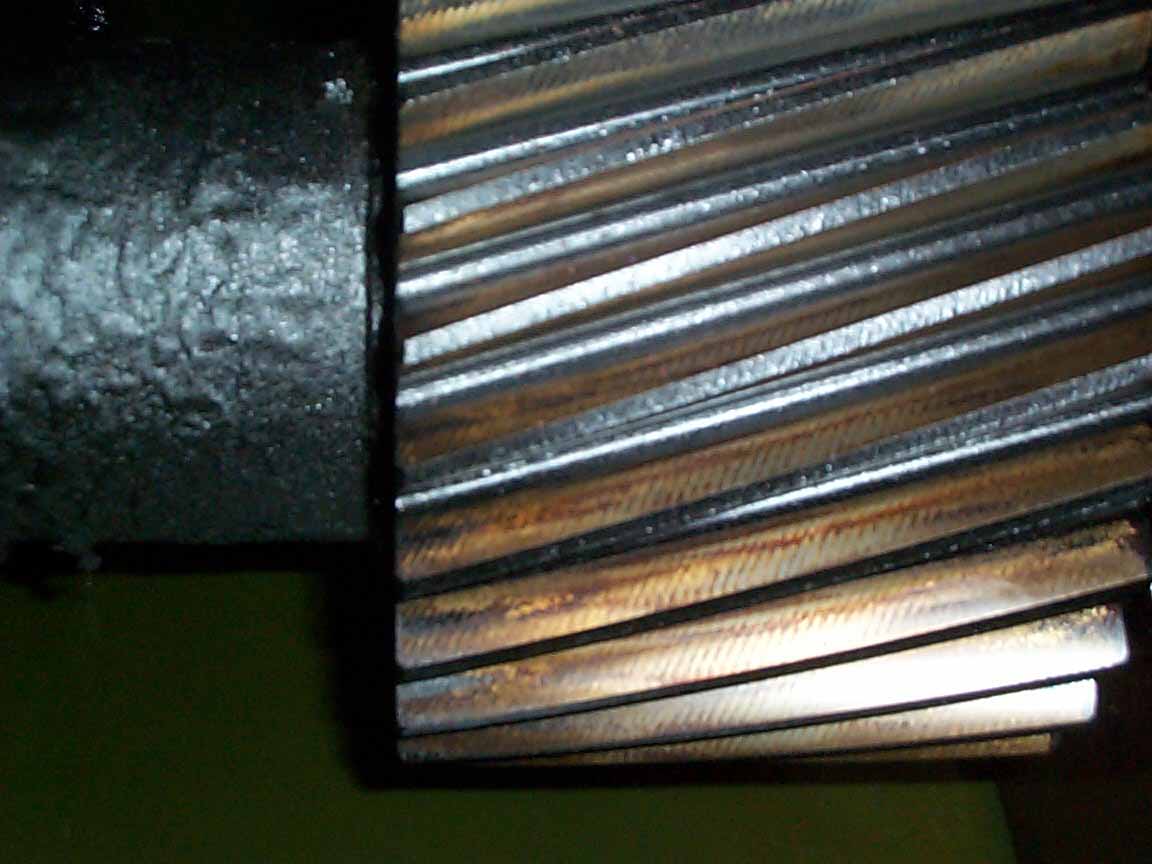

Click on images for larger view.
