Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Horsburgh & Scott Our ID No.      002059
Model:      WD3000-1600 Ratio:      204:1
MO# or S/N      E4546 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      150,000 In-Lbs Shaft Diameters High Speed:  1.750 **
Low Speed:  5.250 **
Weight      4,000 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
86.88:1

8.58 RPM
20 HP
1430 RPM
-
-
1170 RPM
5.74 RPM
13 HP
870 RPM
4.26 RPM
10 HP
720 RPM
3.53 RPM
8 HP
580 RPM
-
-
Notes:
* Shaft dimensions from the catalog. Actual dimensions have not been verified.



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

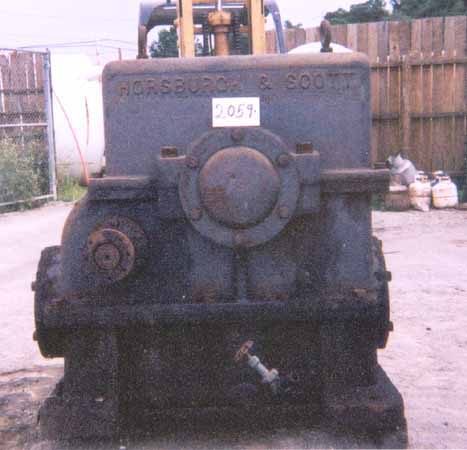

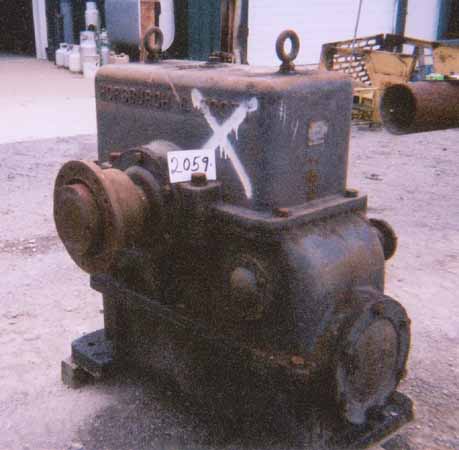

Click on images for larger view.
