Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Horsburgh & Scott Our ID No.      002060
Model:      WBH1600 Ratio:      86.88:1
MO# or S/N      M9695 Alt. S/N
IP Speed       HP rating      5.82 HP Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Shaft Diameters High Speed:  1.375 *
Low Speed:  3.000 *
Weight      800 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
86.88:1

20 RPM
8.23 HP
1430 RPM
-
-
1170 RPM
13.5 RPM
5.82 HP
870 RPM
10 RPM
5.08 HP
720 RPM
8.3 RPM
4.43 HP
580 RPM
6.8 RPM
3.71 HP
Notes:
* Shaft dimensions from the catalog. Actual dimensions have not been verified.



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

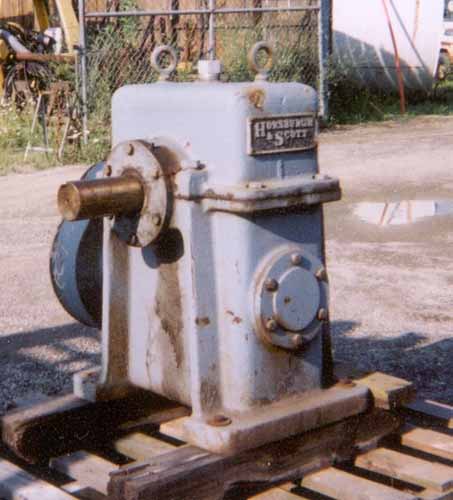

Click on images for larger view.
