- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Foote-Jones Our ID No.      002095
Model:      270THC Ratio:      86.9:1
MO# or S/N      393025 Alt. S/N
IP Speed      580 RPM HP rating      17 HP Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      230,000 Lb-Inches Shaft Diameters High Speed:  1.9375
Low Speed:  5.7500
Weight      3,185 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
86.9:1

20
74 HP
1170
13.5
50 HP
580
6.8
25 HP
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

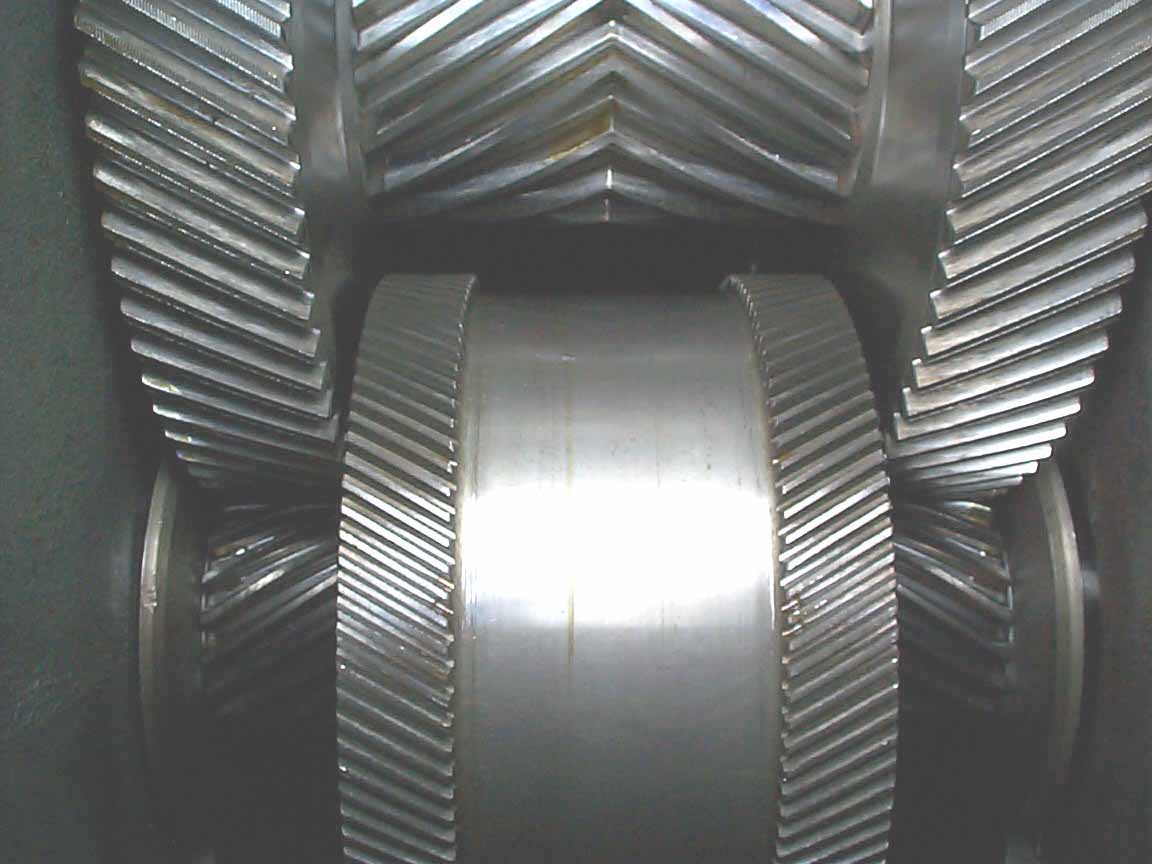

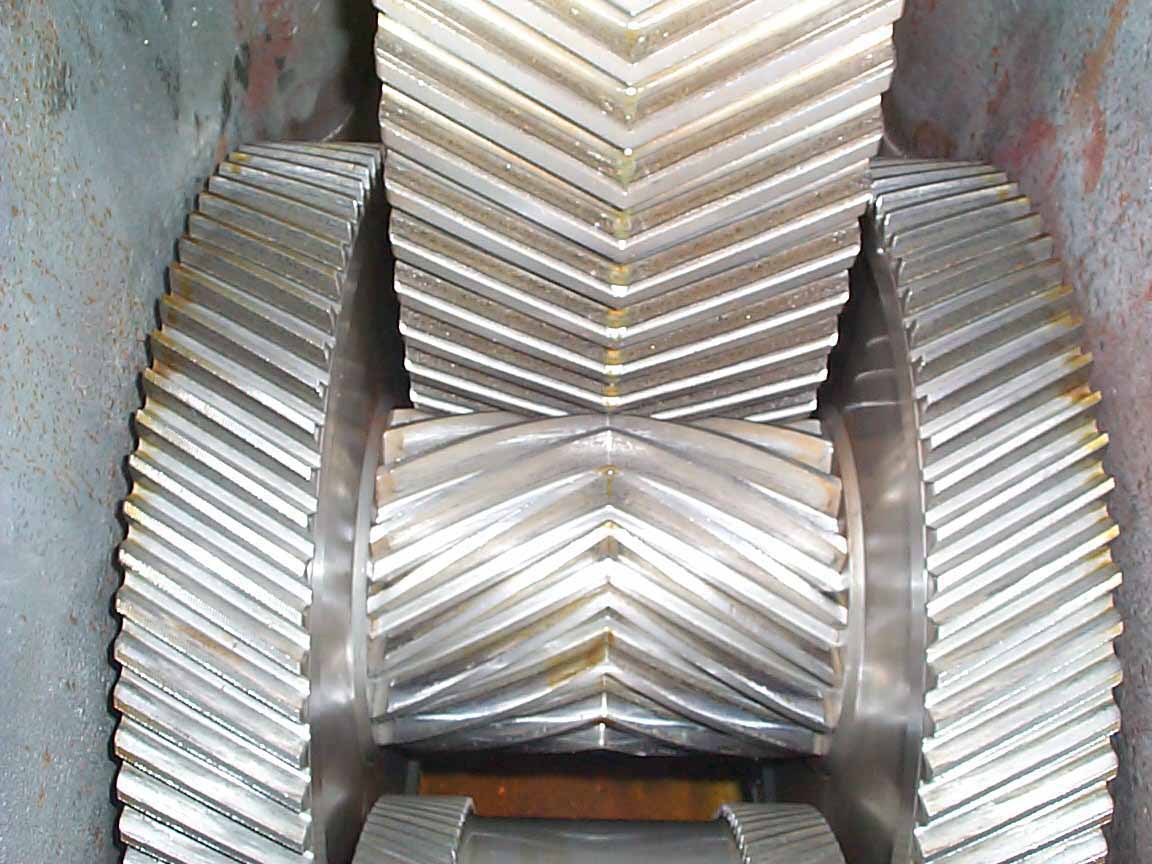

Click on images for larger view.
