Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N
Manufacturer:      DEMAG AC / DC      AC KEM #      003016
 Squirrel Cage    Variable Speed    Brake Motor  X  Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

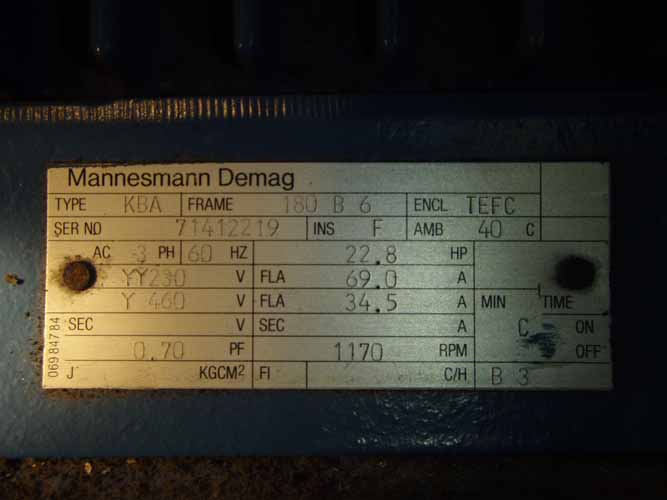

N A M E P L A T E      D A T A
 HP  22.8  RPM  1170  Frame  180B6  Enclosure  TEFC
 Volts  YY230/Y460  Amps   69/34.5  Cycles  60  Phase  3
 Type  KBA  NEMA Class Design    Code    Insulation Class  F
 Max Ambient    Service Factor    Duty
 Model    Serial Number  71412219  Drive End Brg    Opp Dr End Brg

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
