Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005233
Model:      2120Y2L Ratio:      26.15:1
MO# or S/N      95-066007-01 Alt. S/N
IP Speed      1750 RPM HP rating      150 HP Cat. Rating      292 HP
OP Speed:      66.9 RPM SF / SC      1.95 - SF
Date      2/95 Oil Capacity      13.0
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      275,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  6.000
Weight      3500 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
26.15:1

68
327 HP
1430
56
274 HP
1170
45
228 HP
870
34
175 HP
720
28
147 HP
580
22
120 HP
Notes:

Condition: New Surplus





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

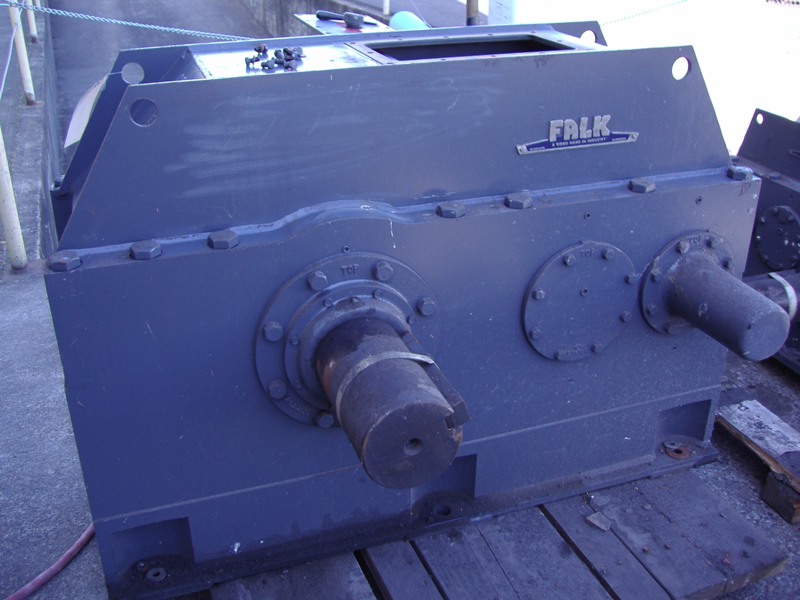

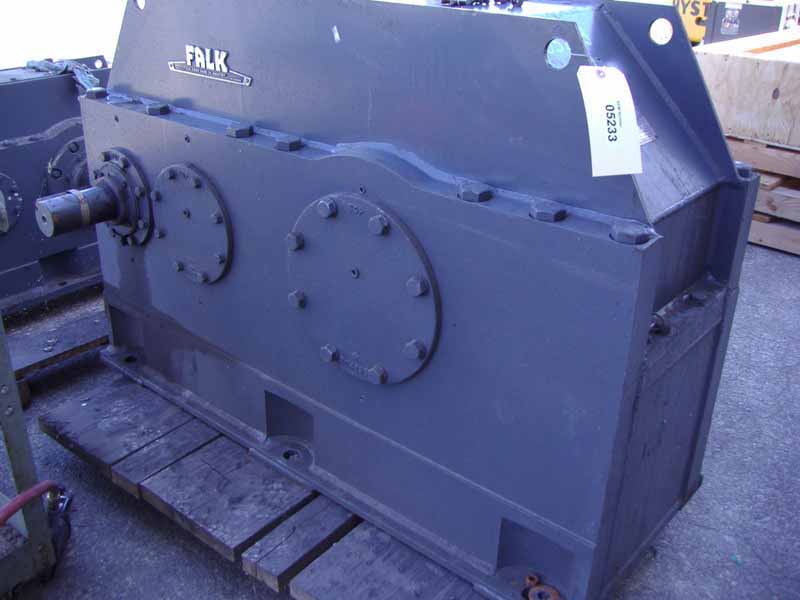

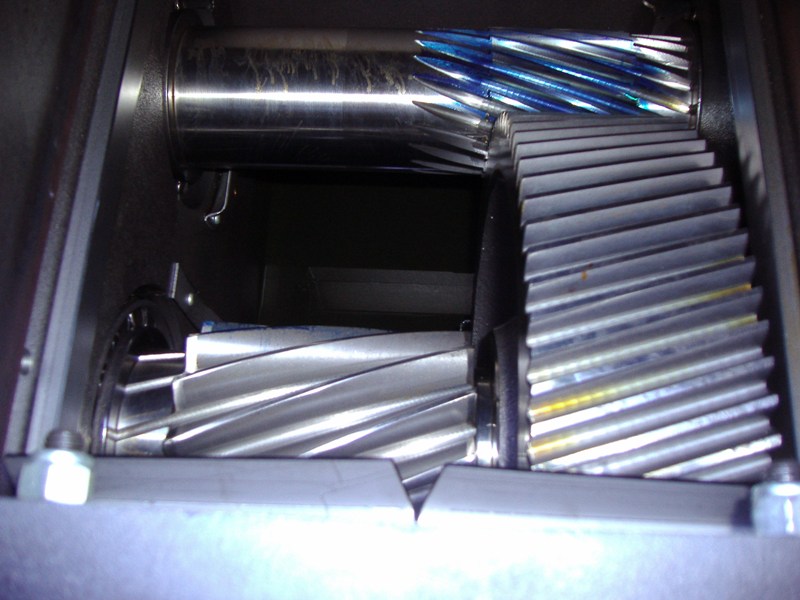

Click on images for larger view.
