- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005236
Model:      2080Y3-LD Ratio:      153.5:1
MO# or S/N      9-066310 Alt. S/N
IP Speed      1750 RPM HP rating      15 Cat. Rating
OP Speed:      11.4 RPM SF / SC      1.27 - SF
Date      6/90 Oil Capacity      7.5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      105,000 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  4.000
Weight      1400 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
153.5:1

11.4
19.1 HP
1430
9.3
15.7 HP
1170
7.6
12.9 HP
870
5.7
9.62 HP
720
4.7
7.68 HP
580
3.8
6.45 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

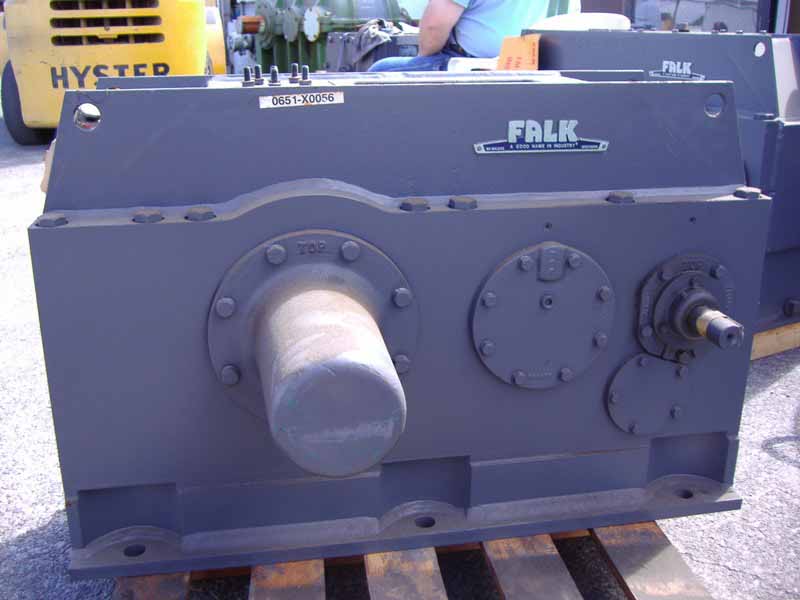

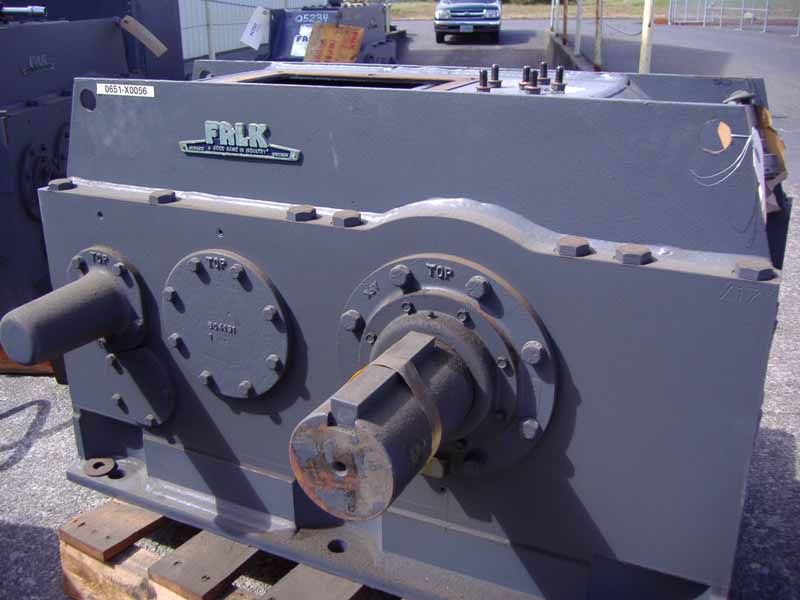

Click on images for larger view.
