Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      SEW EURODRIVE Our ID No.      005240
Model:      RF60DT80K4BMHRC Ratio:      48.90:1
MO# or S/N      860046690.3.04.86.009 Alt. S/N
IP Speed      1700 RPM HP rating      .75 HP Cat. Rating
OP Speed:      35 RPM SF / SC      1.6 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      1,350 Lb-Inches Shaft Diameters High Speed:
Low Speed:  1.250
Weight       Assembly
Notes:

Condition: New Surplus
80 Units
Severe Duty Brake Motor
Model: DFT80K4BMHRC
SO# 860046690.3.04.86.009
.75 HP, 1700 RPM, TEFC, 230/460V, 3PH, 60 HZ





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

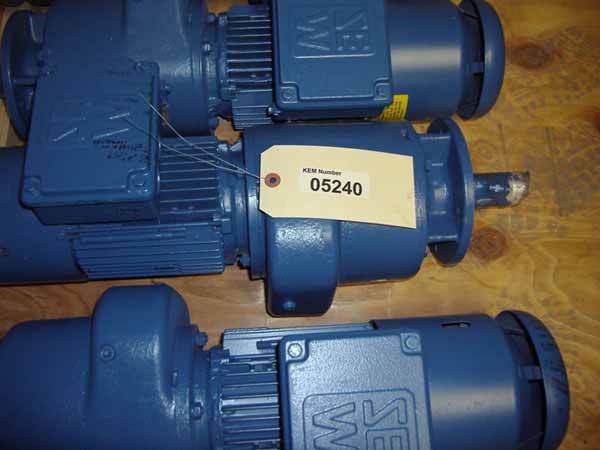

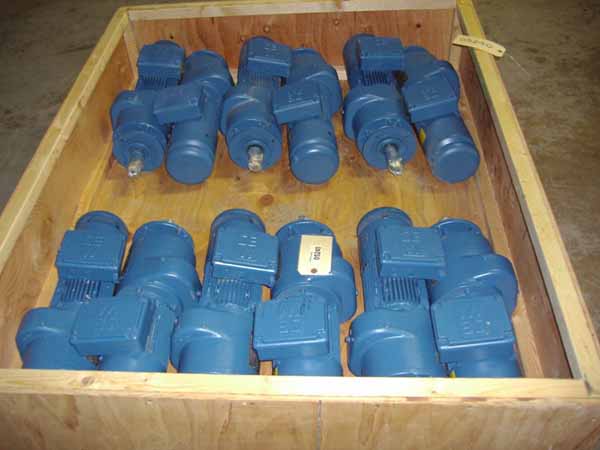

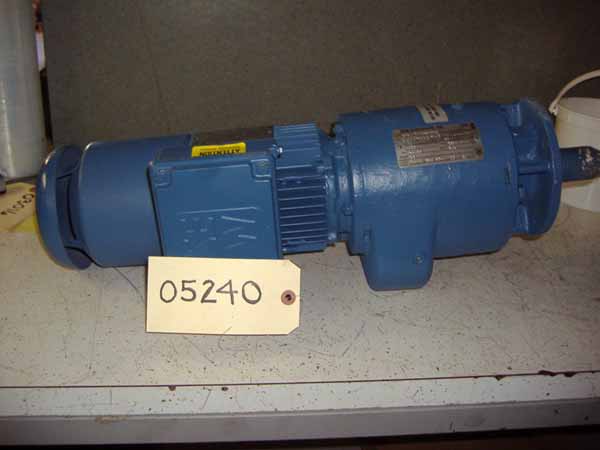

Click on images for larger view.
