Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005244
Model:      2090YB2L Ratio:      31.67:1
MO# or S/N      95-066006-01 Alt. S/N
IP Speed      1750 RPM HP rating      50 HP Cat. Rating
OP Speed:      55.3 RPM SF / SC      1.98 - SF
Date      2/95 Oil Capacity      12.0
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      113,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  4.500
Weight      1850 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
31.67:1

56
99.1 HP
1430
45
82.4 HP
1170
37
68.5 HP
870
28
52.1 HP
720
22
43.6 HP
580
18
35.6 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

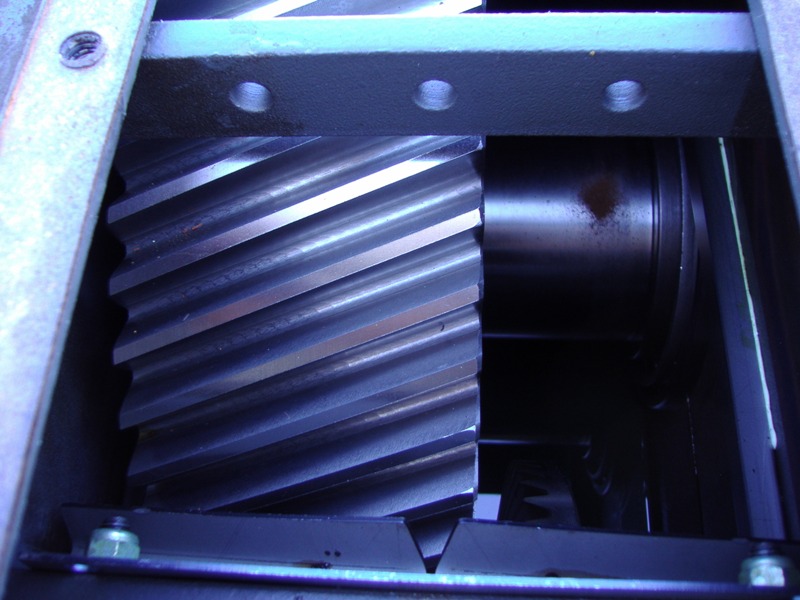

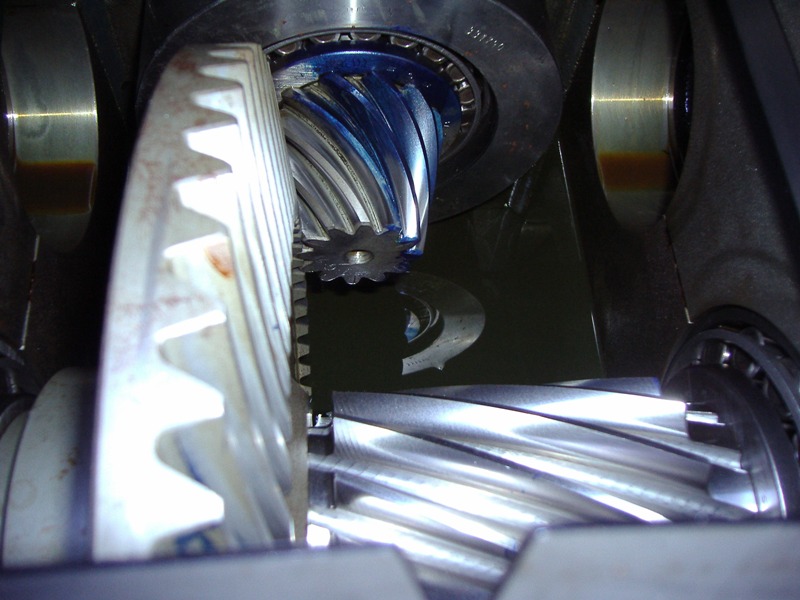

Click on images for larger view.
