- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

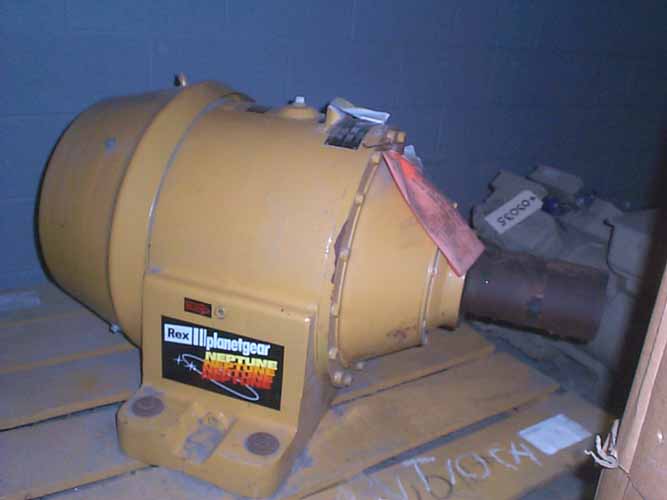

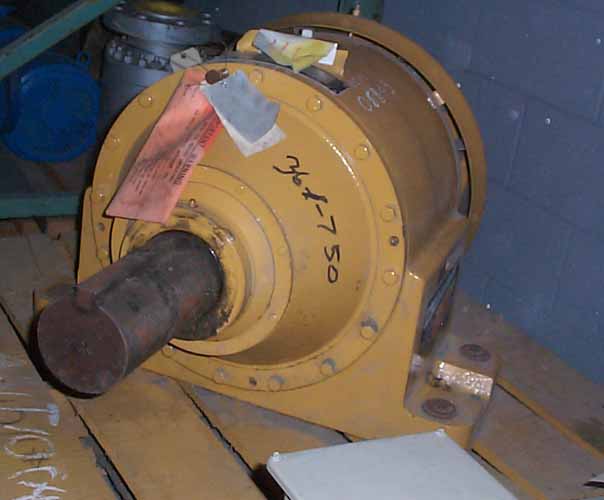

Manufacturer:      REXNORD NEPTUNE Our ID No.      005343
Model:      NAAB0043-21529 Ratio:      13.85:1
MO# or S/N      21529-1A Alt. S/N
IP Speed      1750 RPM HP rating      100 HP Cat. Rating
OP Speed:      126 RPM SF / SC      1.6 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      115,000 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  4.500
Weight      1100 Lbs Approx Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/Fan
1750
13.85:1

126
245.9 HP
230 HP
1430
103
200.9 HP
See "Notes"
1170
84
164.4 HP
See "Notes"
870
63
122.2 HP
See "Notes"
Notes:

Condition: NEW SURPLUS
-- With Cooling Fan
-- Thermal Rating Exceeds Mechanical Rating For Input Speeds 1430 and lower


DIMENSION SHEET HERE!!!
