Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Eurodrive Our ID No.      005354
Model:      KA106R80LP Ratio:      172:1
MO# or S/N      870032238 8.01.87.001 Alt. S/N
IP Speed      1750 RPM HP rating       Cat. Rating
OP Speed:      10 RPM SF / SC      1 - SF
Date      1988 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      53,100 Lb-Inches Shaft Diameters High Speed:  215TC
Low Speed:  3 1/4, Hollow
Weight      700 Lbs Approx. Assembly      H1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
172:1

10 RPM
9.5 HP
1430 RPM
-
-
1170 RPM
-
-
870 RPM
-
-
720 RPM
-
-
580 RPM
-
-
Notes:
Condition: USED SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

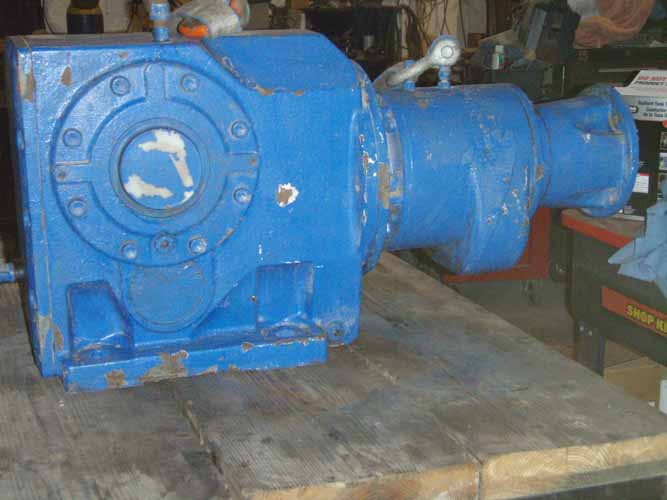

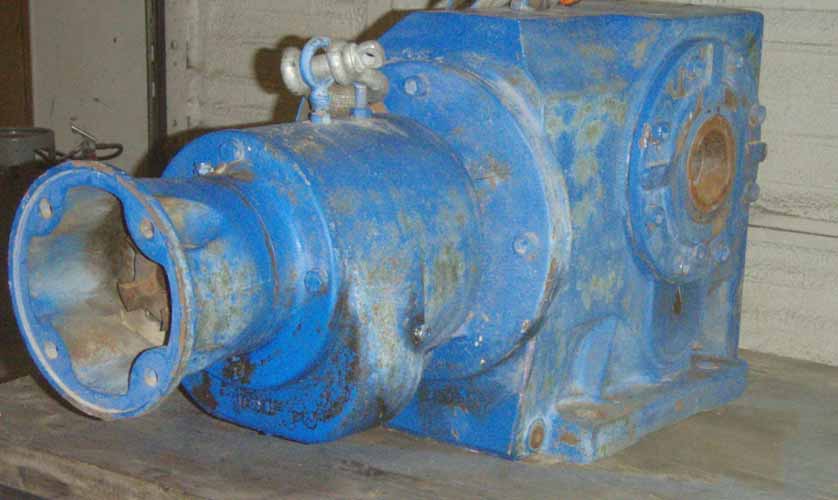

Click on images for larger view.
