Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005365
Model:      2060Y1-LD Ratio:      6.077:1
MO# or S/N      8-965973 Alt. S/N
IP Speed      1831 RPM HP rating      100 HP Cat. Rating
OP Speed:      301.3 RPM SF / SC      1.40 SF
Date      7/89 Oil Capacity      2 US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      30,600 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  3.000
Weight      500 Lbs Approx. Assembly      Assembly #1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.007:1

280 RPM
140 HP
1430 RPM
230 RPM
117 HP
1170 RPM
190 RPM
98.7 HP
870 RPM
140 RPM
76.1 HP
720 RPM
115 RPM
64.3 HP
580 RPM
95 RPM
53.0 HP
Notes:
Condition: Used, very good



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

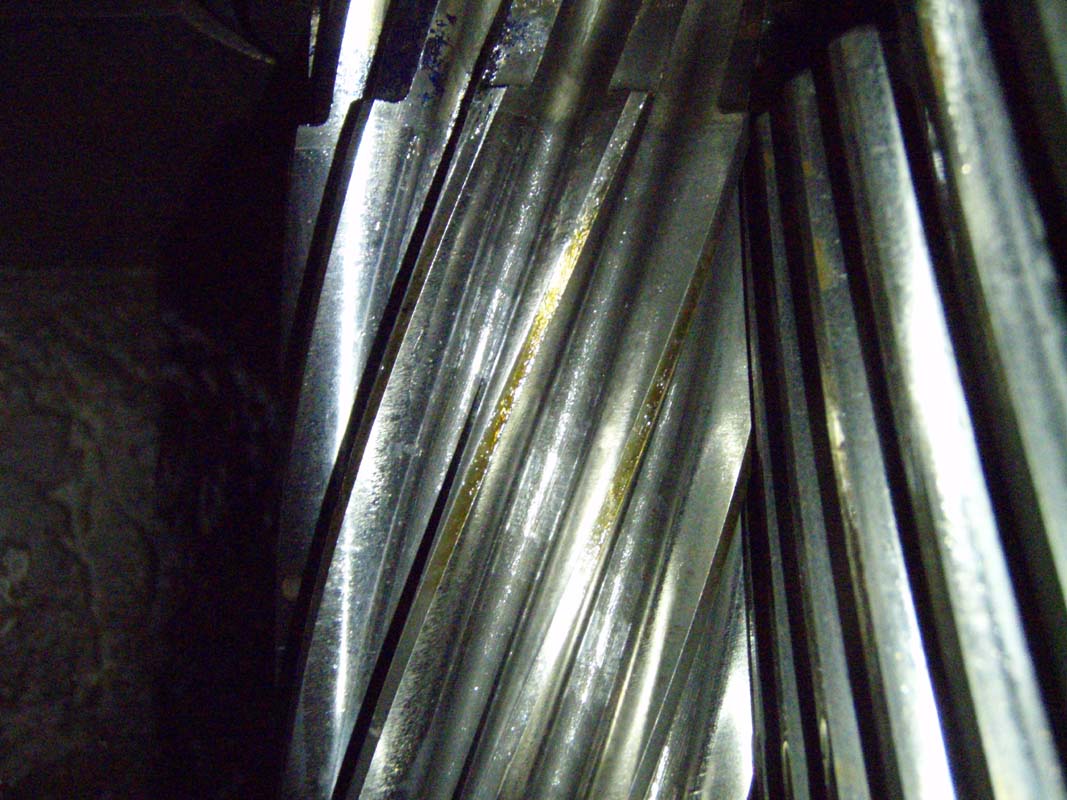

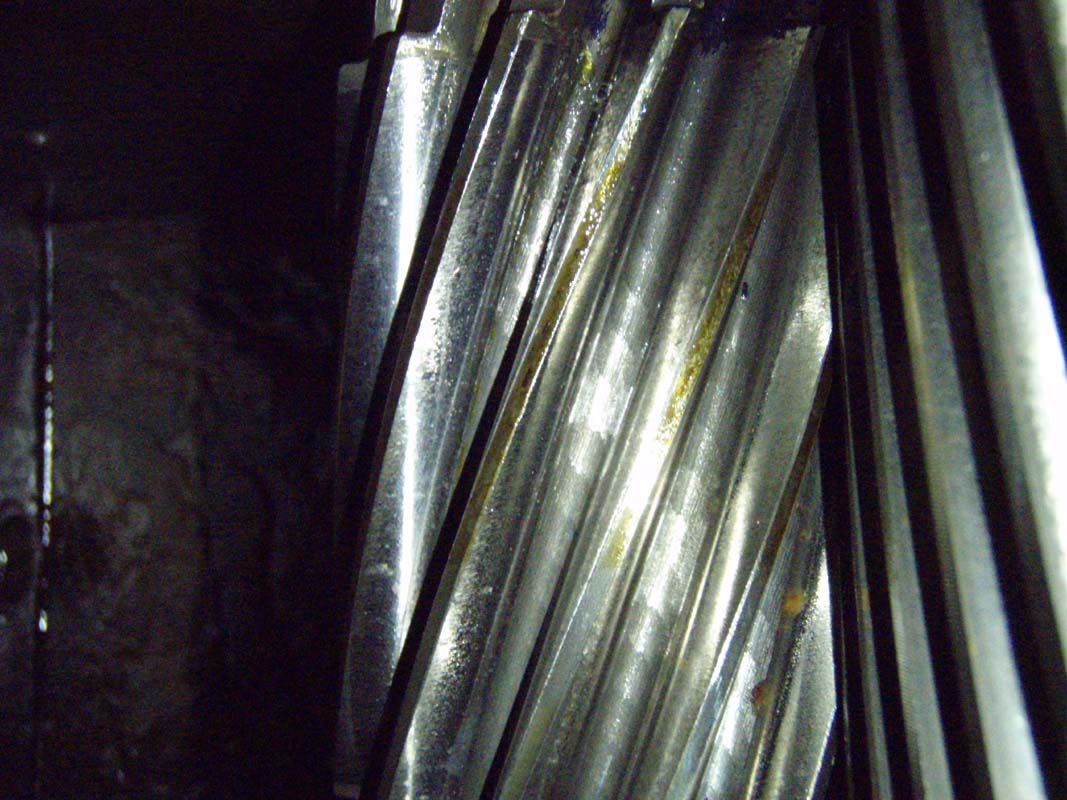

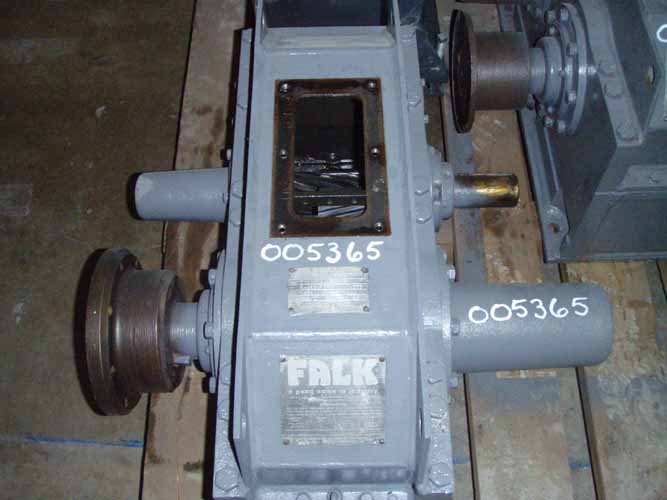

Click on images for larger view.
