Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005386
Model:      2060Y2-LD Ratio:      20.85:1
MO# or S/N      9-065856 Alt. S/N
IP Speed      1150 RPM HP rating      30 HP Cat. Rating
OP Speed:      55.2 RPM SF / SC      1.34 - SF
Date      4/90 Oil Capacity      3.8
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      44,300 Lb-Inches Shaft Diameters High Speed:  1.500
Low Speed:  3.000
Weight      650 Lbs Approx. Assembly      Assembly #8 - Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
20.85:1

84
54.0 HP
1430
68
49.1 HP
1170
56
40.8 HP
870
42
31.0 HP
720
34
26.0 HP
580
28
21.2 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff

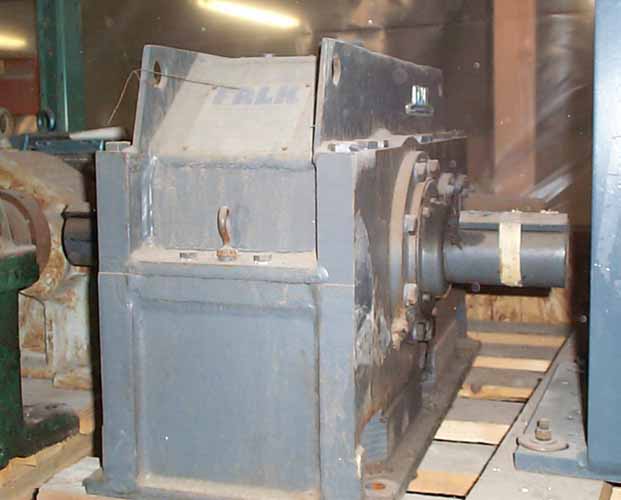

Click on images for larger view.
