- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      REXNORD Our ID No.      005412
Model:      Jupiter Ratio:      54.45:1
MO# or S/N      JAKB0335-23585 Alt. S/N      23585-1A
IP Speed      1535 RPM HP rating      200 HP Cat. Rating      308 HP
OP Speed:      28 RPM SF / SC      1.54 - SF
Date      1/96 Oil Capacity      32
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      600,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  7.250
Weight      3,500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
With Fan
1750
54.45:1

32
351.89 HP
260 HP
1430
26
287.55 HP
See: "Notes"
1170
21
235.27 HP
See: "Notes"
870
16
174.94 HP
See: "Notes"
Notes:

Condition: REBUILT SURPLUS
With High Speed Shaft Driven Cooling Fan
---For Imput Speeds 1430 & Below, The Thermal Rating Exceeds Mechanical Rating--




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

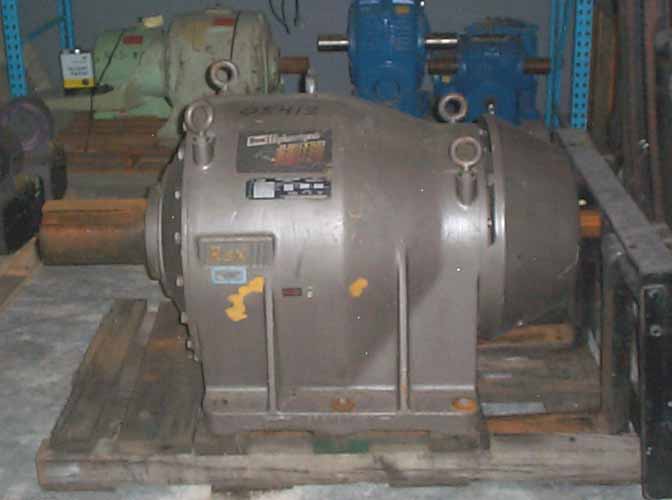

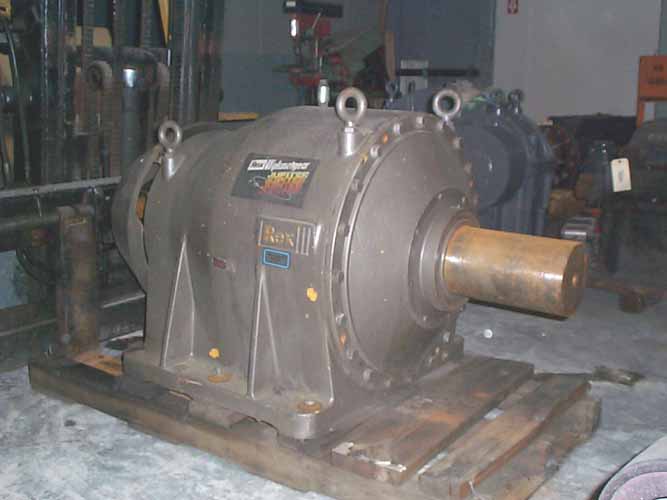

Click on images for larger view.
