- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Flender Our ID No.      005420
Model:      SDN 360 Ratio:      38.785:1
MO# or S/N      480 108 032-1-1 Alt. S/N
IP Speed      1202 RPM HP rating      200 HP Cat. Rating      267 HP
OP Speed:      31 RPM SF / SC      1.34 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      528,327 Lb-Inches Shaft Diameters High Speed:  2.3750
Low Speed:  6.6875
Weight      3,800 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
38.785:1

45
360 HP
1170
30
260 HP
870
22
195 HP
720
18
160 HP
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

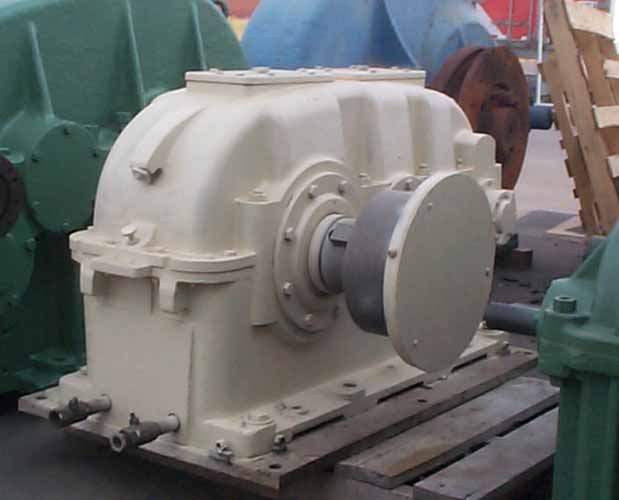

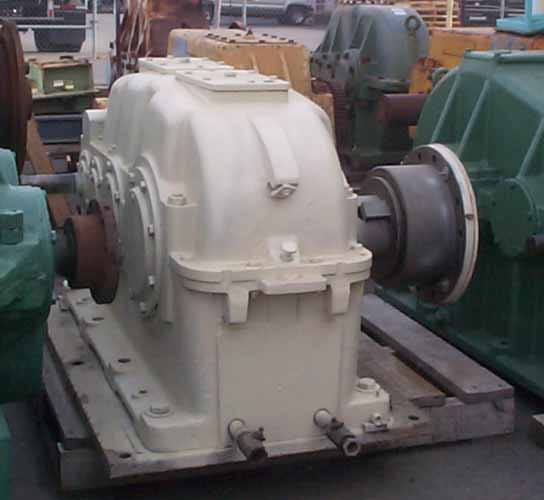

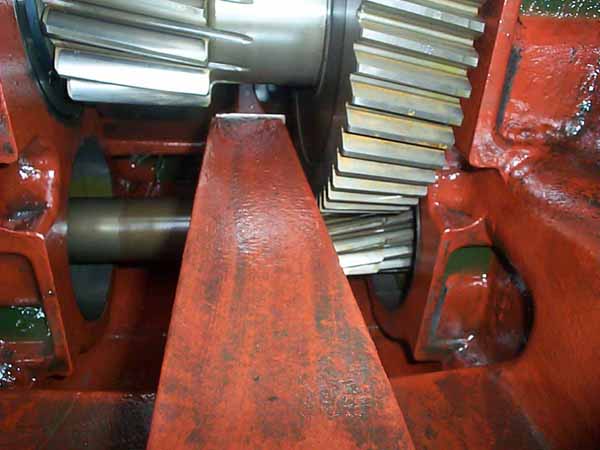

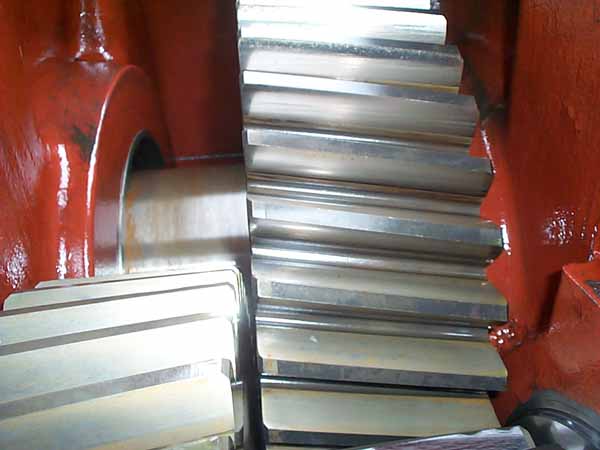

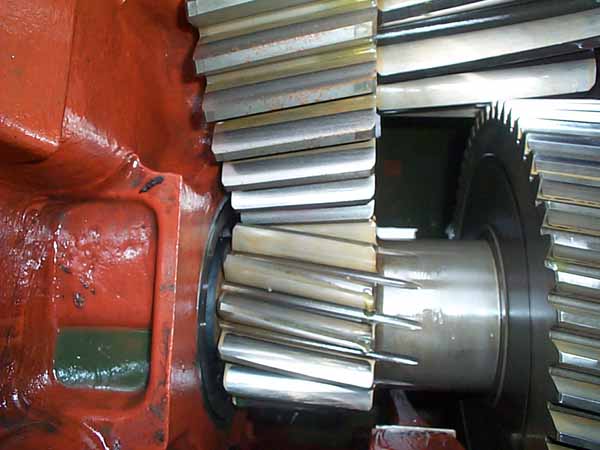

Click on images for larger view.
