- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      WESTERN Our ID No.      005421
Model:      OD58H Ratio:      48:1
MO# or S/N       Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      146,000 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  5.000
Weight      3,600 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
48:1

36.5 RPM
HP
1430 RPM
30 RPM
HP
1170 RPM
24.3 RPM
HP
870 RPM
18.1 RPM
HP
720 RPM
15 RPM
HP
580 RPM
12 RPM
HP
Notes:
Condition: USED



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

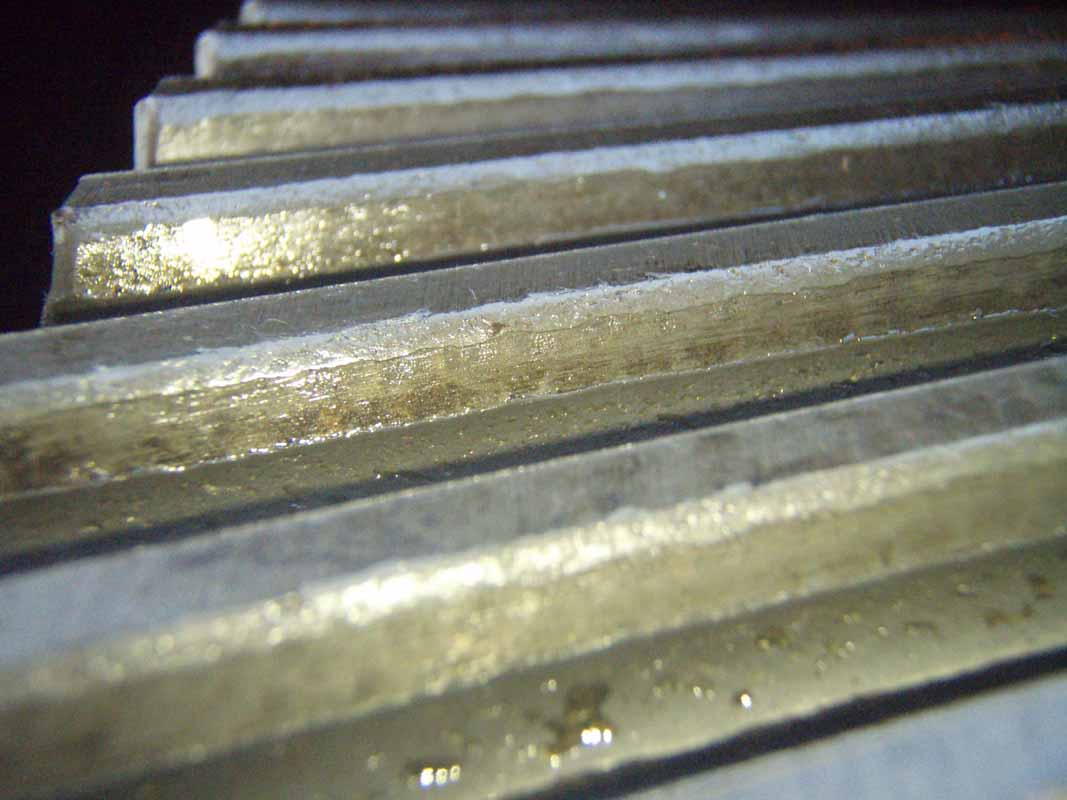

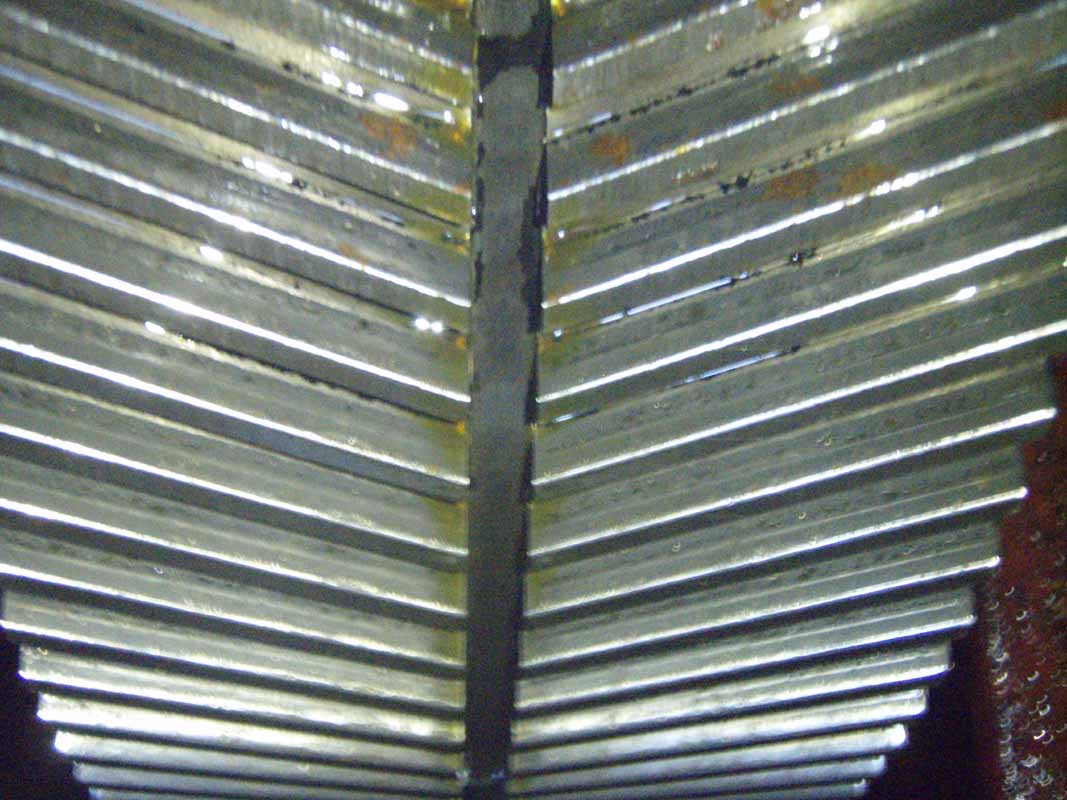

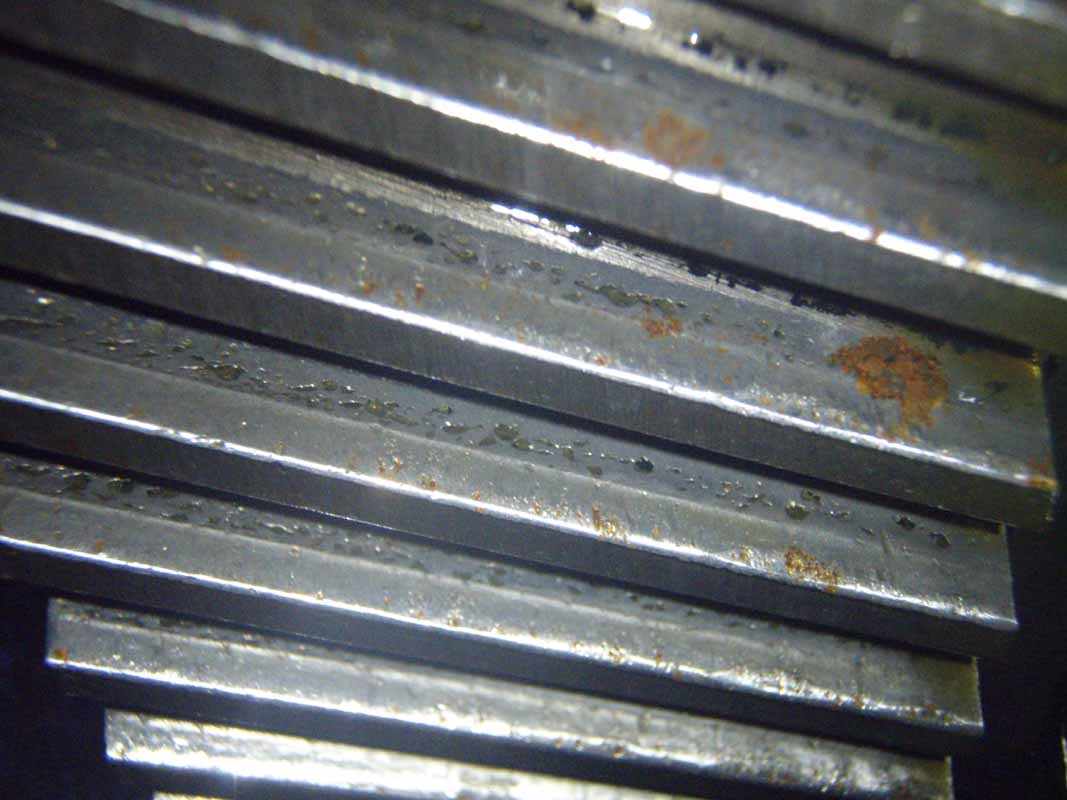

Click on images for larger view.
