Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
||||||
---|---|---|---|---|---|---|
|
||||||
Manufacturer: | JERVIS B. WEBB/ MORSE | Our ID No. | 005425 | |||
Model: | 25DV | Ratio: | 75:1 | |||
MO# or S/N | 195ML5275 | Alt. S/N | ||||
IP Speed | 1750 | HP rating | .81 | Cat. Rating | ||
OP Speed: | 23.33 | SF / SC | 1.0 | |||
Date | Oil Capacity | |||||
Torque Rating | 1573 Lb-Inches | Shaft Diameters | High Speed: .625 Hollow Low Speed: 1.250 | |||

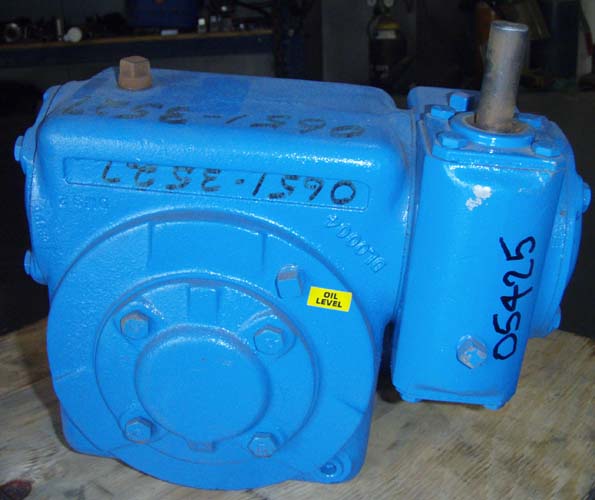

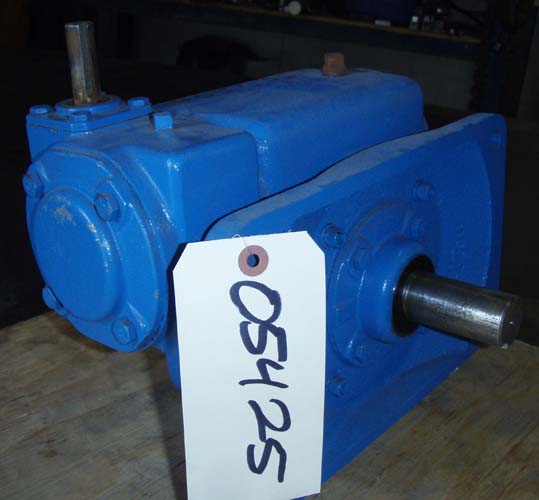

Weight | 70 Lbs Approx. | Assembly | See picture below | |||
Notes: |
| |||||
|
Click on images for larger view. |
