Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

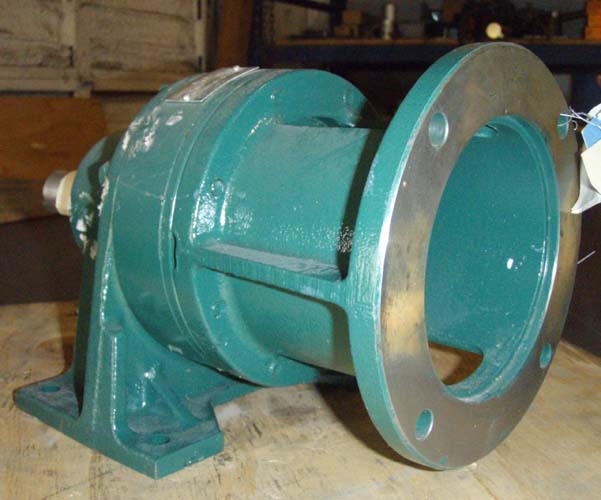

Manufacturer:      SM-CYCLO Our ID No.      005431
Model:      CNHJ54105Y11 Ratio:      11:1
MO# or S/N       Alt. S/N      A701546
IP Speed      1750 RPM HP rating      3.01 HP Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      1104 Lb-Inches Shaft Diameters High Speed:  .625
Low Speed:  1.125
Weight      29 Lbs Approx Assembly Inlin C-Face 56C, 140TC
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
11:1

155
3.01 HP
1170
100
2.33 HP
870
77
1.92 HP
580
50
1.43 HP
Notes:

Condition: NEW SURPLUS
