Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005459
Model:      2070Y1-LD Ratio:      4.929:1
MO# or S/N      97-066732-01 Alt. S/N
IP Speed      998 RPM HP rating      40 HP Cat. Rating
OP Speed:      202.5 RPM SF / SC      4.2 - SF
Date      5/97 Oil Capacity      2.8
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      46,700 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  3.500
Weight      850 Lbs Approx Assembly      Assembly #11
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 thermal Rating
W/No Cooling
1750
4.929:1

350
263 HP
135 HP
1430
280
222 HP
148 HP
1170
230
187 HP
143 HP
870
175
145 HP
135 HP
720
140
123 HP
See: "Notes"
580
115
102 HP
See: "Notes"
Notes:

Condition: NEW SURPLUS
For Input Speeds 720 and Below,
The Thermal Rating Exceeds Mechanical Rating




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

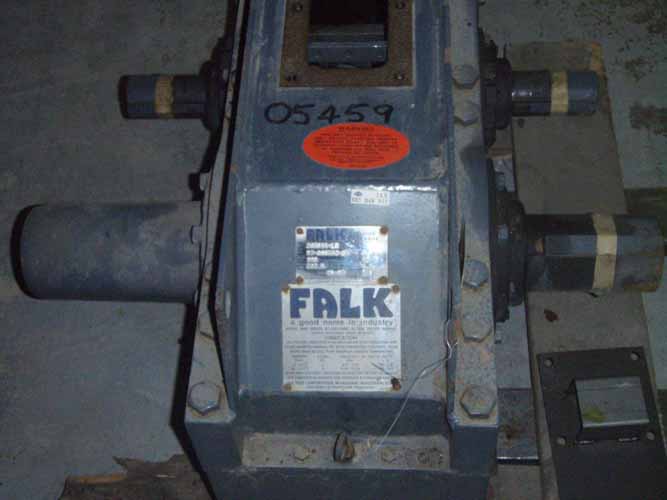

Click on images for larger view.
