Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N

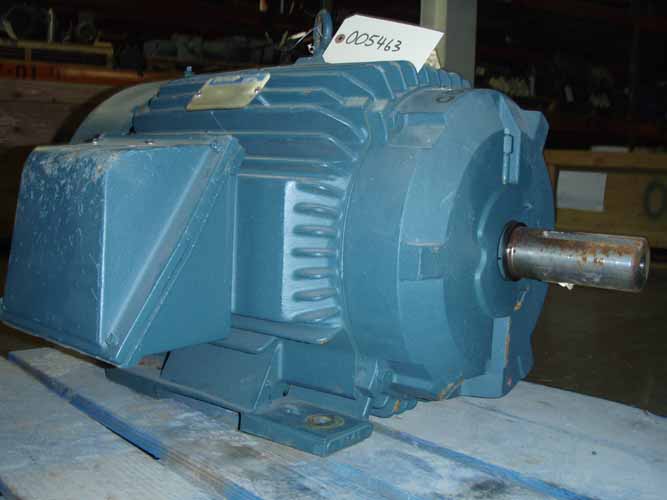

Manufacturer:      RELIANCE AC / DC      AC KEM #      005463
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

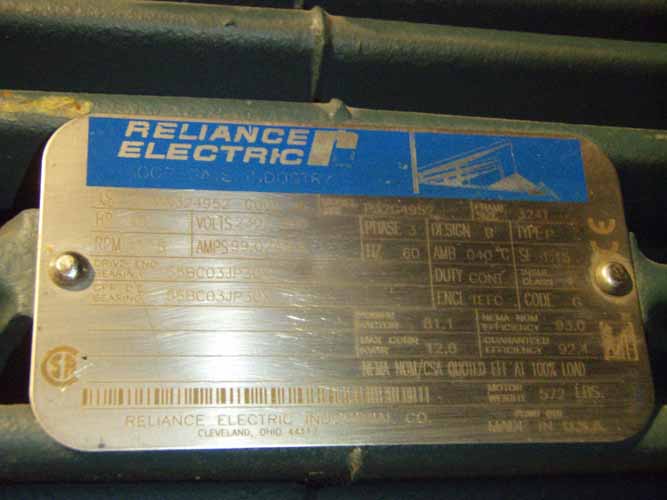

N A M E P L A T E      D A T A
 HP  40  RPM  1775  Frame  324T  Enclosure  TEFC
 Volts  230 / 460  Amps  99 / 49.5  Cycles  60  Phase  3
 Type  P  NEMA Class Design  B  Code  G  Insulation Class  F
 Max Ambient    Service Factor  1.15  Duty  CONT
 Model  P32G4952  Serial Number  03MN324952 G005 AE  Drive End Brg    Opp Dr End Brg

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight  572 Lbs.
Notes:
Condition:NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
