- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

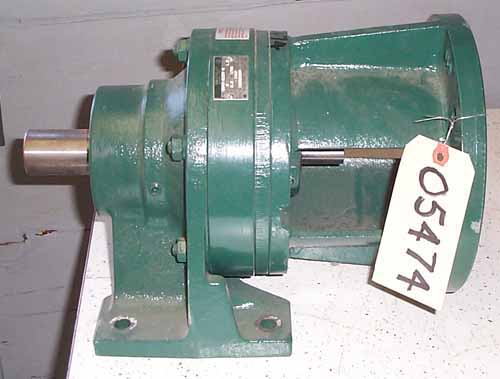

Manufacturer:      SM-CYCLO Our ID No.      005474
Model:      CNHJ-4115Y-8 Ratio:      8:1
MO# or S/N       Alt. S/N      VA0062555
IP Speed      1750 RPM HP rating      6.8 HP Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      1810 Lb-Inches Shaft Diameters High Speed:  .750
Low Speed:  1.500
Weight      49 Lbs Approx Assembly      Inline, C-Face 180TC
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
8:1

219
6.80 HP
1170
146
5.82 HP
870
109
4.76 HP
580
73
3.58 HP
Notes:

Condition: NEW SURPLUS
