- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

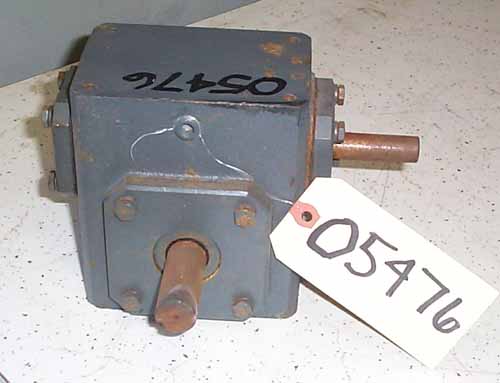

Manufacturer:      FALK Our ID No.      005476
Model:      175WB2A-30 Ratio:      30:1
MO# or S/N      47001360797 Alt. S/N
IP Speed      1750 RPM HP rating      .61 HP Cat. Rating
OP Speed:      58 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating       Shaft Diameters High Speed:  .625, Solid
Low Speed:  .875, Solid
Weight      25 Lbs Approx. Assembly      Right Angle Worm, .625 Solid, .875 Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
30:1

58
.61 HP
1170
39
.48 HP
870
29
.40 HP
Notes:

Condition: NEW SURPLUS
