- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

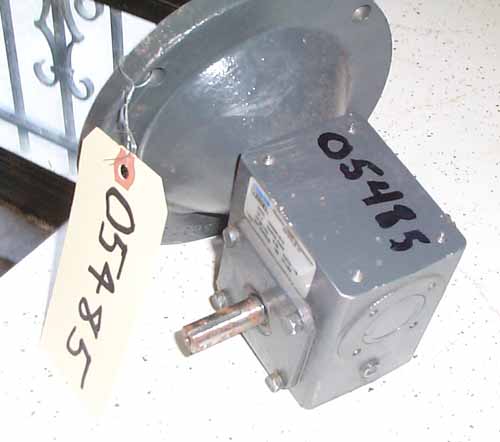

Manufacturer:      Morse Our ID No.      005485
Model:      100Q56LR10 Ratio:      10:1
MO# or S/N      XA0038 D05N Alt. S/N
IP Speed      1750 RPM HP rating      .32 HP Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating       102 Lb-Inches Shaft Diameters High Speed:  56C, Hollow
Low Speed:  .500, Solid
Weight      9 Lbs Approx. Assembly      Right Angle Worm, 56C Hollow, .500 Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
10:1

170
.32 HP
1170
115
.27 HP
Notes:

Condition: NEW SURPLUS
