- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

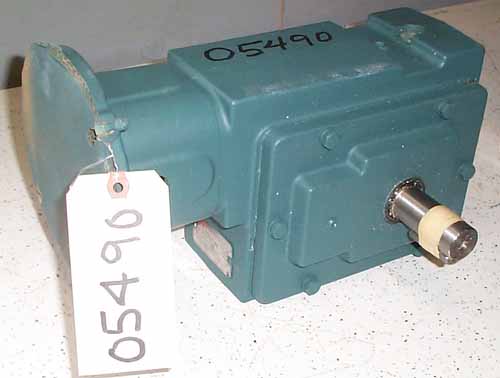

Manufacturer:      DODGE Our ID No.      005490
Model:      140C200B040L1
     C200B040140L1 		Ratio:      40:1
MO# or S/N      M65682200ZRY Alt. S/N      607916763LM
IP Speed      1750 RPM HP rating      2.08 HP Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      2585 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  1.125
Weight       Assembly      RIGHT ANGLE WORM-HELICAL
Notes:






Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
