Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

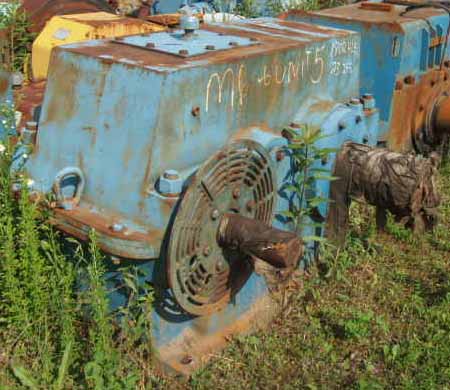

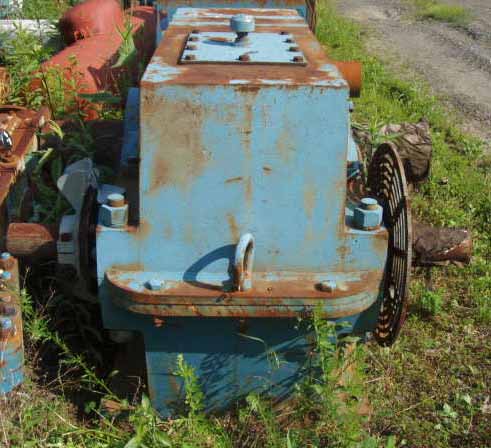

Manufacturer:      Foote Jones Our ID No.      005508
Model:      1802-HLE Ratio:      23.255:1
MO# or S/N      305605 Alt. S/N
IP Speed      1750 RPM HP rating      350 HP Cat. Rating
OP Speed:      75 RPM SF / SC      1.6 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      467,000 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  7.250
Weight      5,500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
23.255:1

75
558 HP
1170
50
405 HP
870
38
313 HP
720
31
263 HP
580
25
219 HP
Notes:

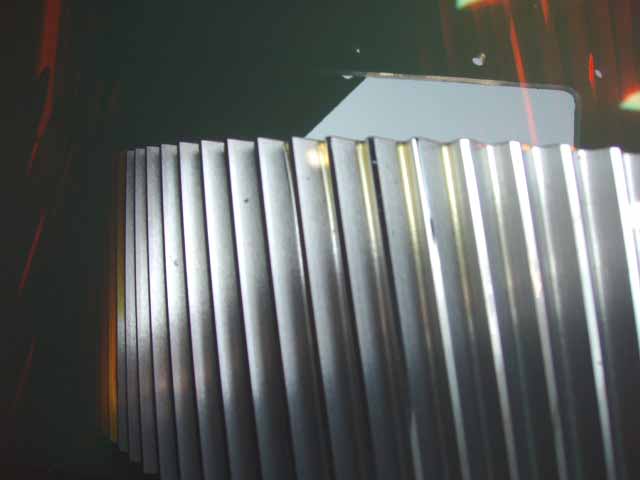

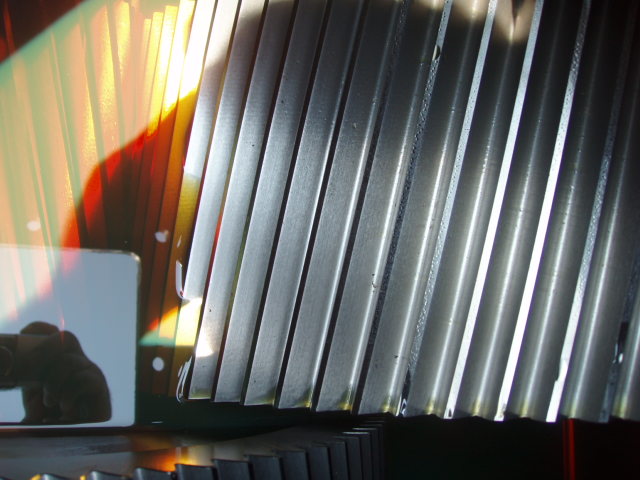

Condition: Used, gears look good
