- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Boston Gear Our ID No.      005552
Model:      730-30SPH Ratio:      30:1
MO# or S/N       Alt. S/N
IP Speed      1750 RPM HP rating      2.34 HP Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      2020 Lb-Inches Shaft Diameters High Speed:  .875, Solid
Low Speed:  1.250, Solid
Weight      65 Lbs Approx. Assembly      Right Angle Worm, Shaft In, Double Shaft Out
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
30:1

58
2.34 HP
1170
38
1.99 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

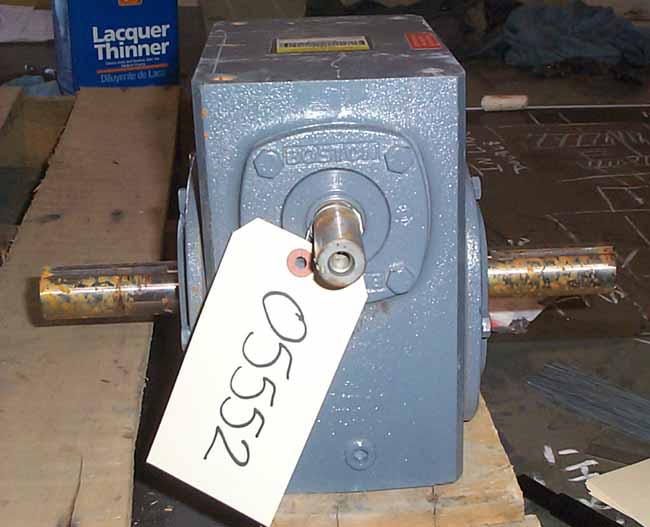

Click on images for larger view.
