Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Morse Our ID No.      005562
Model:      237UH60 Ratio:      60:1
MO# or S/N      XF1160H05K Alt. S/N
IP Speed      1750 RPM HP rating      .66 HP Cat. Rating      .66 HP
OP Speed:      29 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      958 Lb-Inches Shaft Diameters High Speed:  .750, Solid
Low Speed:  1 7/16" Hollow
Weight      20 Lbs Approx. Assembly      Right Angle Worm, .750 Solid, 1 7/16 Hollow
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
60:1

29
.66 HP
1170
19
.54 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

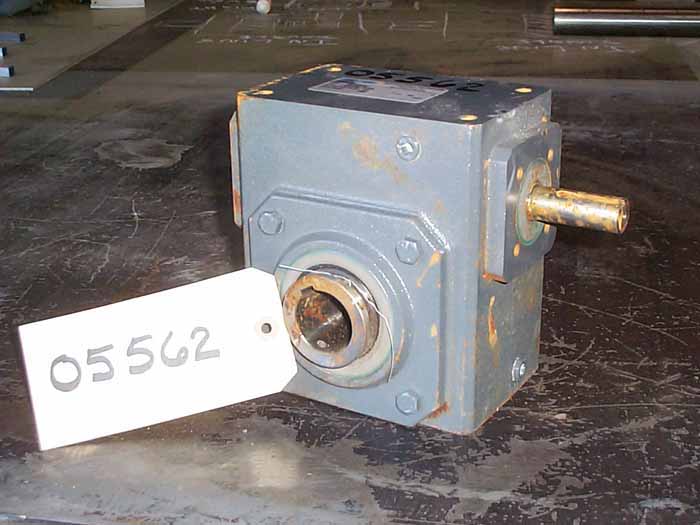

Click on images for larger view.
