- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

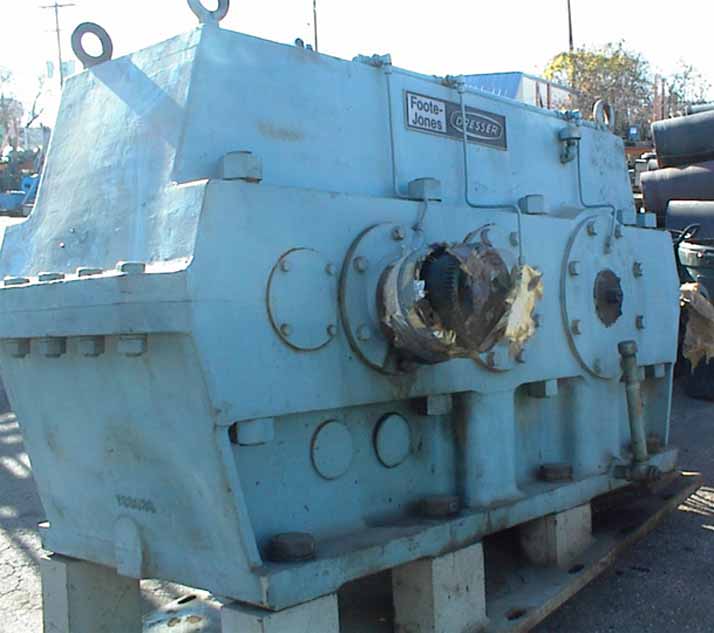

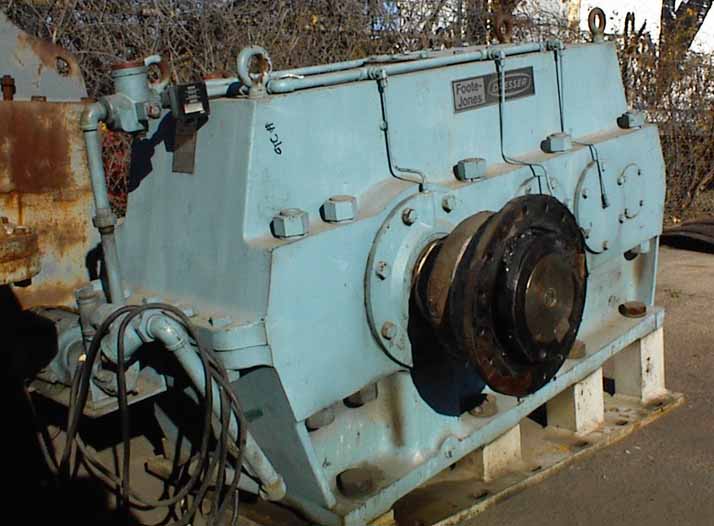

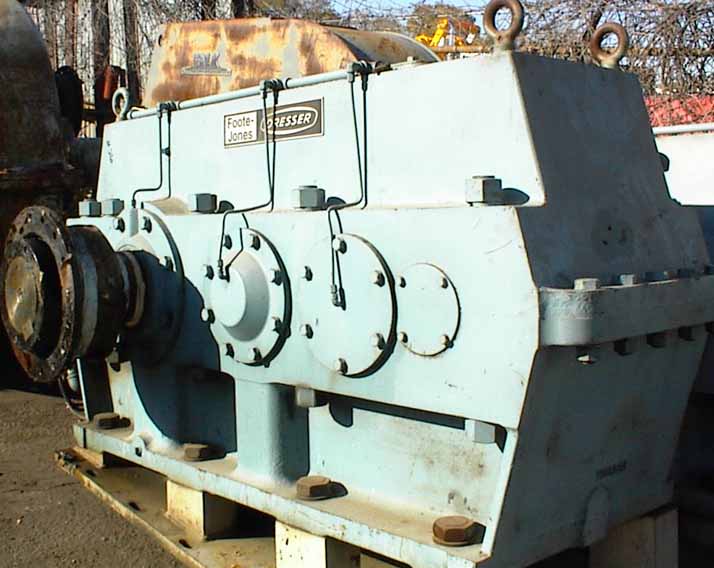

Manufacturer:      Foote-Jones Our ID No.      005585
Model:      2252HLE Ratio:      16.987:1
MO# or S/N      421081 Alt. S/N
IP Speed      8.3 RPM HP rating      126.8 HP Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      761,000 Lb-Inches Shaft Diameters High Speed:  Solid, 4"
Low Speed:  Solid, 9"
Weight      10,500 Lbs Approx Assembly      Assembly #1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
16.987:1

102
1270 HP
1170
68
900 HP
870
51
700 HP
720
42
600 HP
580
34
478 HP
Notes:

Condition:
Very Good
