Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

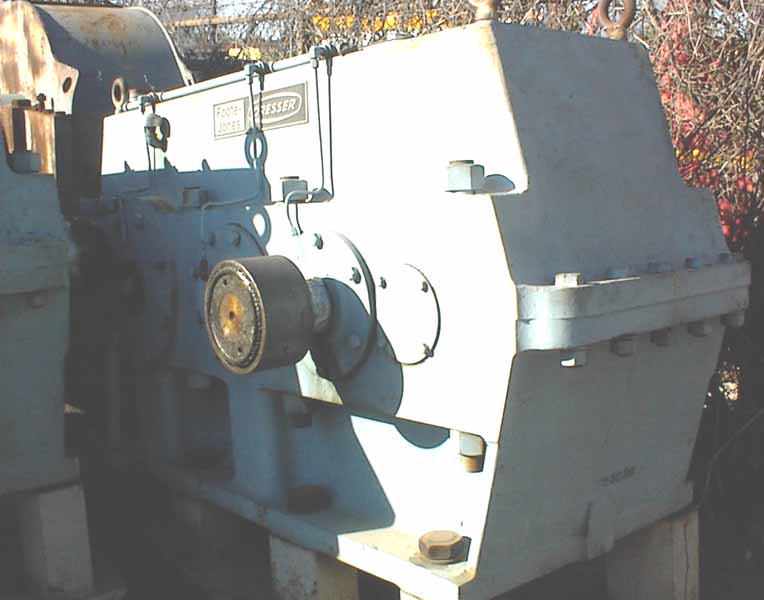

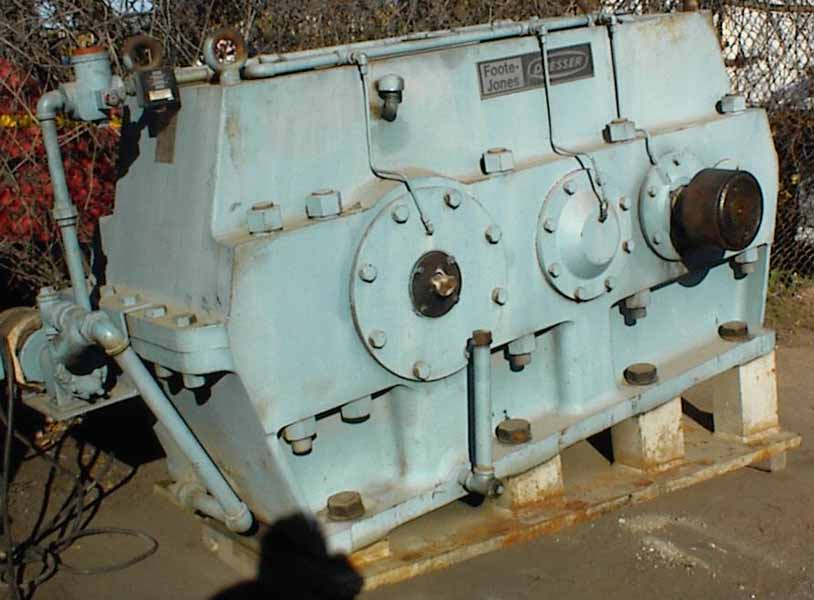

Manufacturer:      Foote-Jones Our ID No.      005586
Model:      2252HLE Ratio:      16.987:1
MO# or S/N      421100 Alt. S/N
IP Speed      8.3 RPM HP rating      126.8 HP Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      761,000 Lb-Inches Shaft Diameters High Speed:  Solid, 4"
Low Speed:  Solid, 9"
Weight      10,500 Lbs Approx. Assembly      Assembly #2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
16.987:1

102 RPM
1270 HP
316 HP
1430 RPM
-
-
-
1170 RPM
68 RPM
900 HP
600 HP
870 RPM
51 RPM
700 HP
-
720 RPM
42 RPM
600 HP
-
580 RPM
34 RPM
478 HP
-
Notes:

Condition: VERY GOOD. Used.
