Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

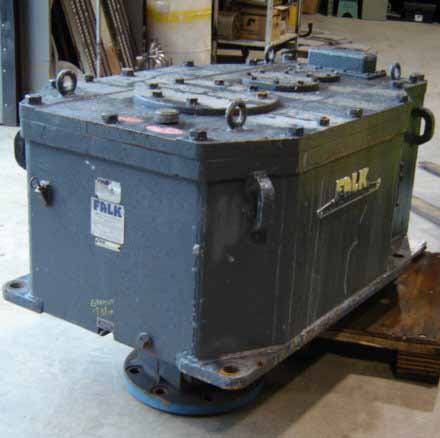

Manufacturer:      Falk Our ID No.      005588
Model:      2110YBXD3A Ratio:      106.6:1
MO# or S/N      99-059015-01 Alt. S/N
IP Speed      1750/583 RPM HP rating      30 HP Cat. Rating
OP Speed:      16.4/5.5 RPM SF / SC      1.86 - SF
Date      2/00 Oil Capacity      38
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      270,000 Lb-Inches Shaft Diameters High Speed:  2.000, Solid
Low Speed:  5.500, Solid

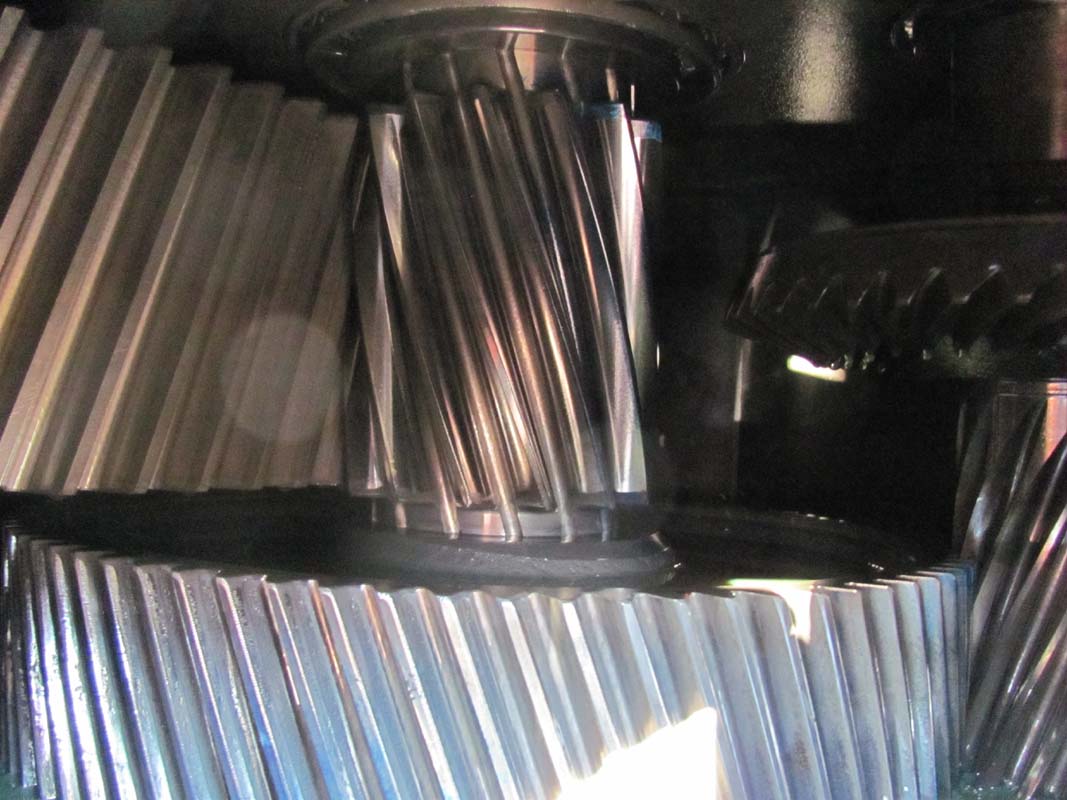

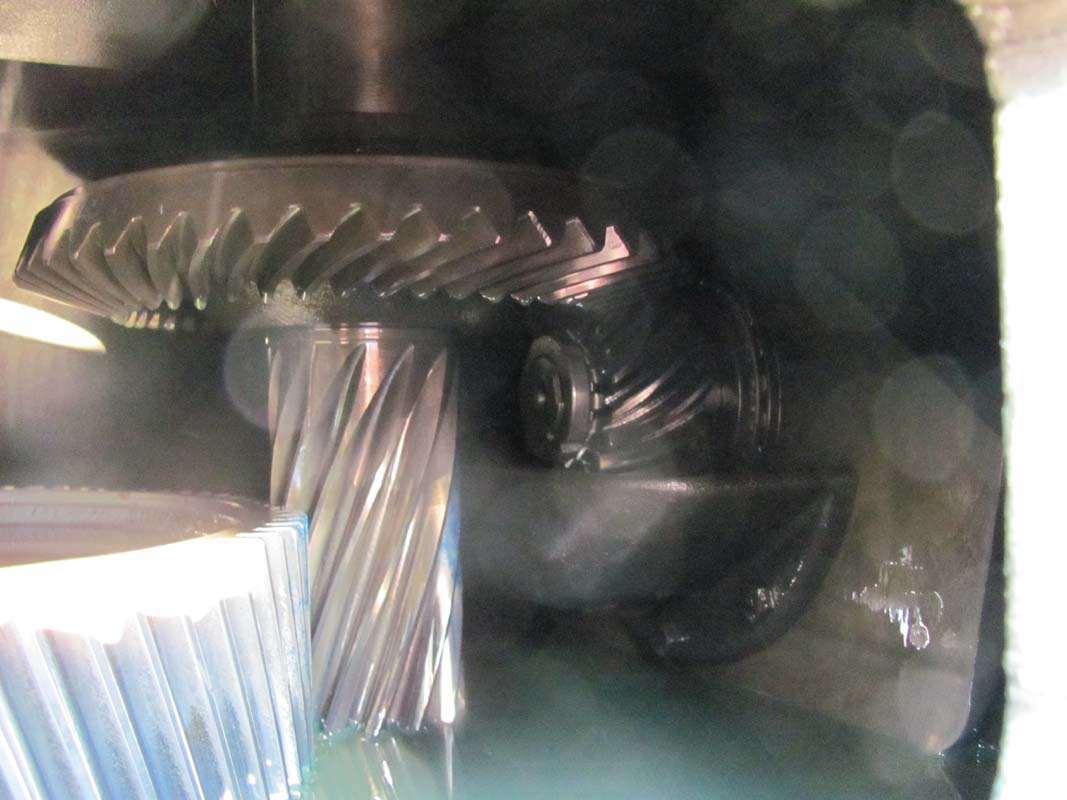

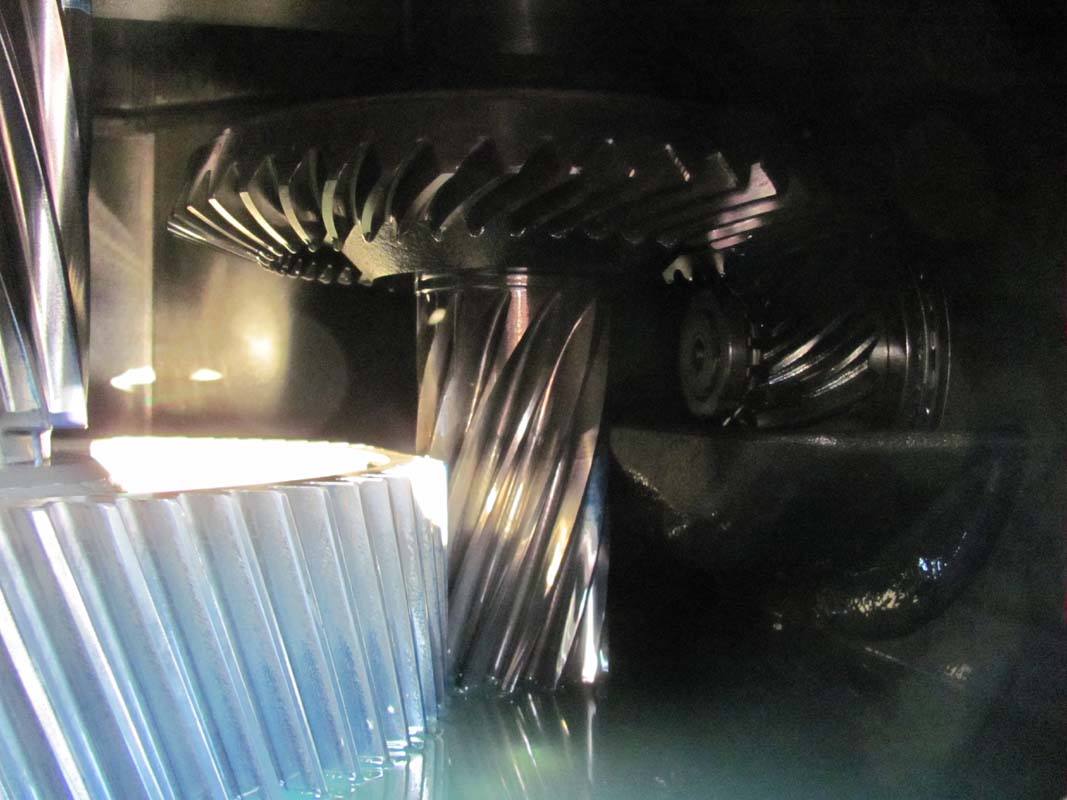

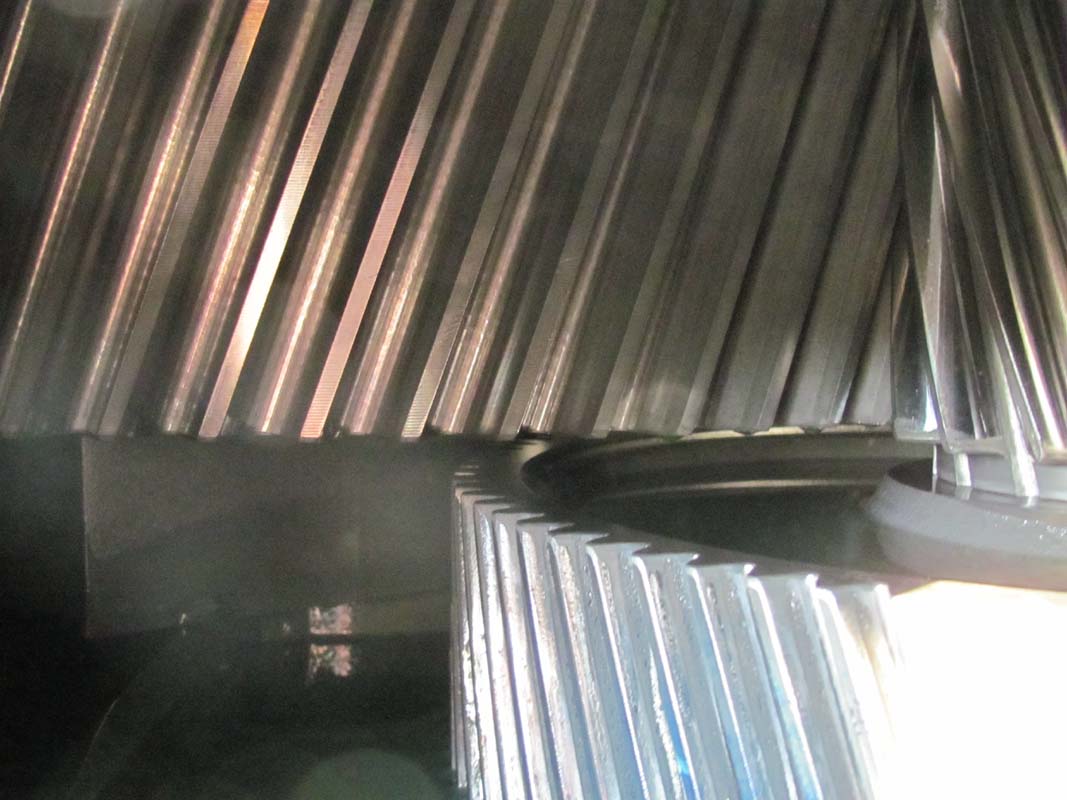

Weight      4,800 Lbs. Approx Assembly      Right Angle, Spiral Bevel-Helical
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
106.6:1

16.5
71.4 HP
1430
13.5
59.0 HP
1170
11.0
48.8 HP
870
8.3
36.8 HP
720
6.8
30.7 HP
580
5.5
25.0 HP
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
