Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005603
Model:      1060FZB4A Ratio:      105.9:1
MO# or S/N      980A1832-05 Alt. S/N
IP Speed      1750 RPM HP rating      7.89 HP Cat. Rating
OP Speed:      16.5 RPM SF / SC      1.0 - SF
Date      09/93 Oil Capacity      7.0
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      30,400 Lb-Inches Shaft Diameters High Speed:  1.2500
Low Speed:  2.7500
Weight      370 Lbs Approx. Assembly      Assembly #11
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
105.9:1

16.5
7.89 HP
1430
13.5
6.47 HP
1170
11
5.31 HP
870
8.3
3.97 HP
720
6.8
3.29 HP
580
5.5
2.66 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

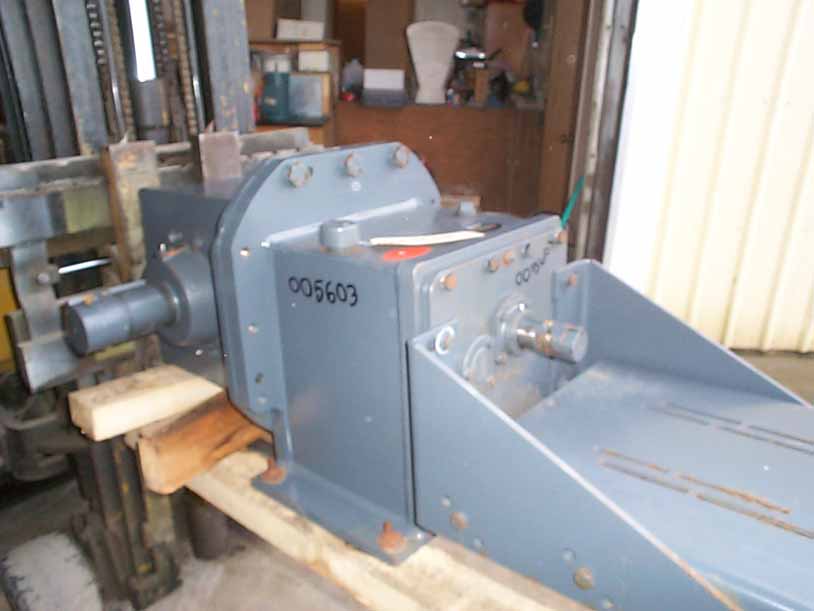

Click on images for larger view.
