Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005670
Model:      2100Y1B Ratio:      2.206:1
MO# or S/N      7-666468-01-1 Alt. S/N
IP Speed      1770 RPM HP rating      485 HP Cat. Rating
OP Speed:      802.4 RPM SF / SC      2.45 - SF
Date       Oil Capacity      16.25
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      94,300 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2200 Lbs Approx. Assembly      Parallel, Assembly #19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/2 Cooling Fans
1750
2.206:1

780
1188 HP
690 HP
1430
640
1032 HP
838 HP
1170
520
897 HP
-
870
390
728 HP
-
720
320
637 HP
-
580
260
548 HP
-
Notes:

Condition: Used Surplus
-Gearing in Excellent Condition
-Unit has two cooling fans




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

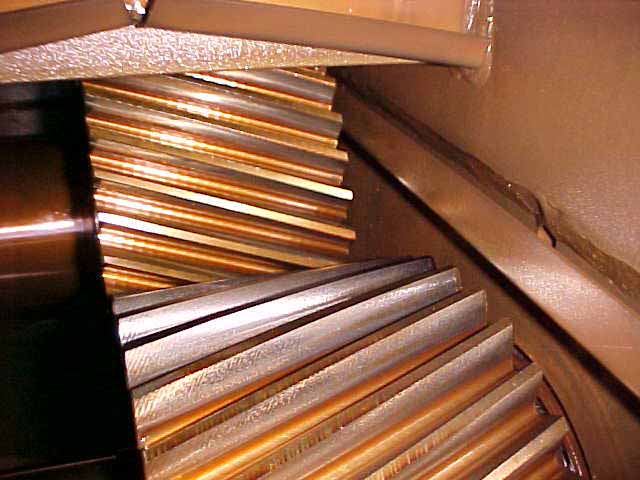

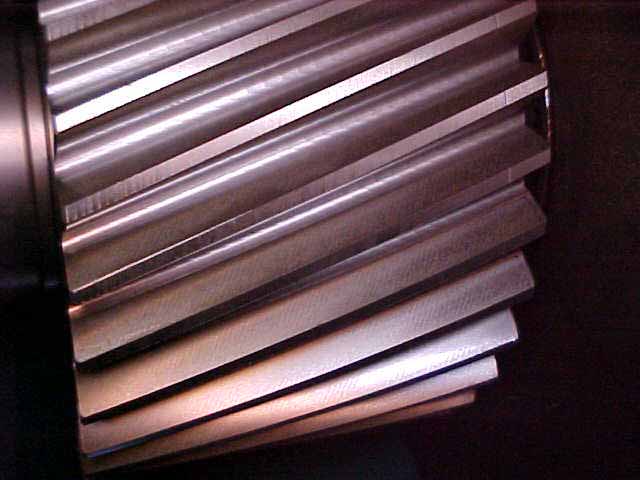

Click on images for larger view.
