- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005679
Model:      2100YB2S Ratio:      7.760:1
MO# or S/N      7-465757-01-2 Alt. S/N
IP Speed      1170 RPM HP rating      150 HP Cat. Rating
OP Speed:      150.8 RPM SF / SC      2.19 SF
Date       Oil Capacity      9 APPROX. US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      132,000 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  5.000
Weight      2300 Lbs Approx. Assembly      Right Angle, Assembly # 44
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
7.760:1

230 RPM
472 HP
113 HP
1430 RPM
190 RPM
398 HP
161 HP
1170 RPM
155 RPM
329 HP
218 HP
870 RPM
115 RPM
250 HP
Thermal HP Exceeds mechanical rating
720 RPM
95 RPM
213 HP
580 RPM
77 RPM
177 HP
Notes:
Condition:

Used, very good condition

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

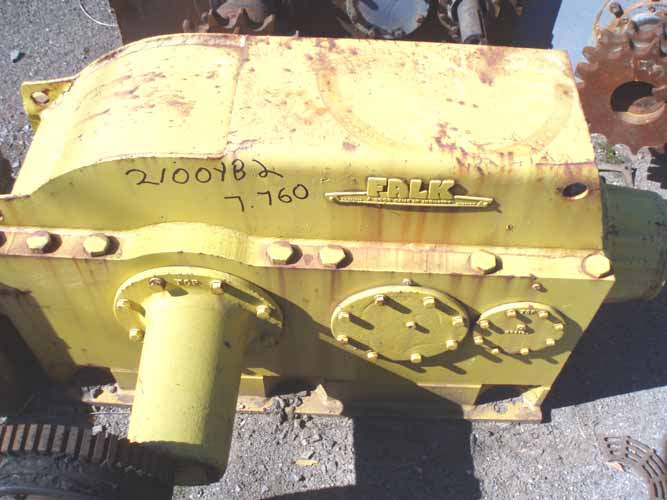

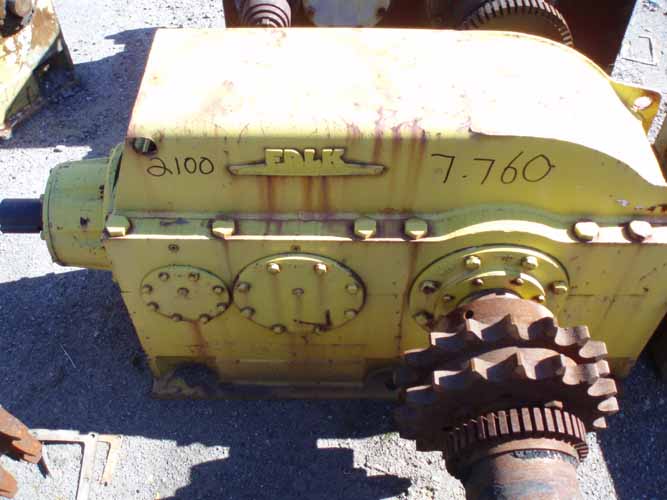

Click on images for larger view.
