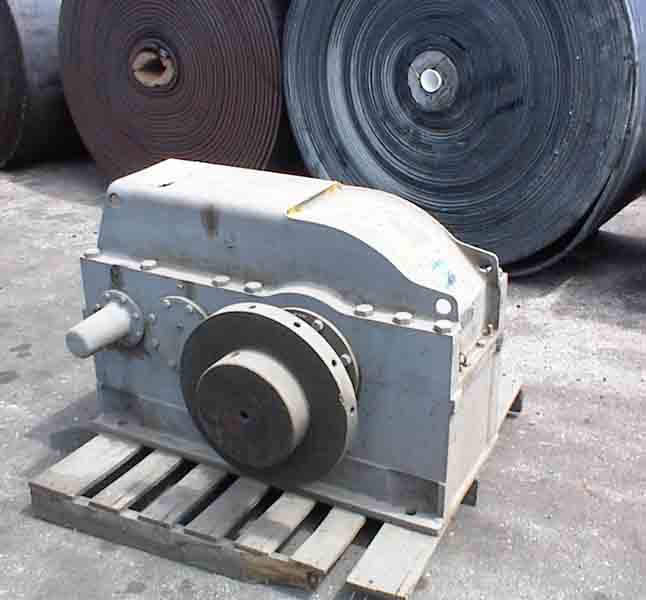

- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005694
Model:      2100Y2-B Ratio:      33.24:1
MO# or S/N      92-069057 Alt. S/N
IP Speed      1750 RPM HP rating      61.6 HP Cat. Rating
OP Speed:      52.6 RPM SF / SC      2.27 - SF
Date      4/92 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      169,000 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  5.000
Weight      2110 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
33.24:1

56 RPM
146 HP
1430 RPM
45 RPM
121 HP
1170 RPM
37 RPM
101 HP
870 RPM
28 RPM
76.9 HP
720 RPM
22 RPM
64.5 HP
580 RPM
18 RPM
52.7 HP
Notes:
Condition:
