- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005710
Model:      2135Y2-B Ratio:      45.56:1
MO# or S/N      7-466556-01 Alt. S/N
IP Speed      1750 RPM HP rating      108 HP Cat. Rating
OP Speed:      38.4 RPM SF / SC      1.78 - SF
Date       Oil Capacity      37 US GAL.
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      382,000 Lb-Inches Shaft Diameters High Speed:  3.250
Low Speed:  6.500
Weight      4,600 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
45.56:1

37 RPM
233 HP
1430 RPM
30 RPM
194 HP
1170 RPM
25 RPM
161 HP
870 RPM
18 RPM
122 HP
720 RPM
15 RPM
101 HP
580 RPM
12.5 RPM
82.2 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

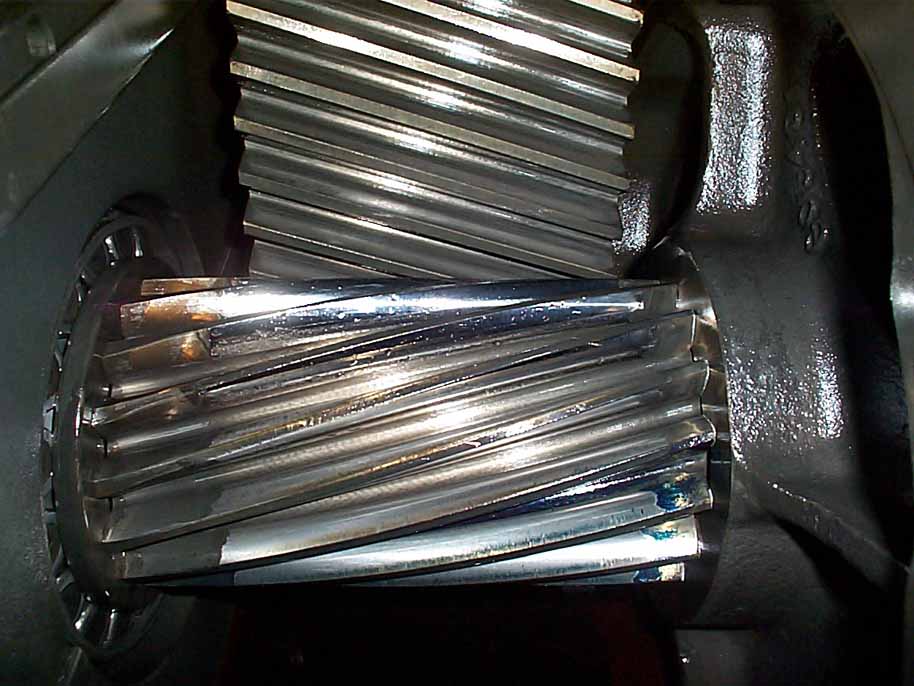

Click on images for larger view.
