Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005713
Model:      587Z4S Ratio:      140.25:1
MO# or S/N       Alt. S/N
IP Speed      1170 RPM HP rating      400 HP Cat. Rating      700 HP
OP Speed:      8.34 RPM SF / SC      1.75 SF
Date      9/98 Oil Capacity      Approx 275 US Gallons
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       5,289,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  13.000
Weight       38,000 Lbs Approx. Assembly       Assembly #6
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
140.25:1

12.5 RPM
1040 HP
1430 RPM
10.2 RPM
850 HP
1170 RPM
8.34 RPM
700 HP
870 RPM
6.20 RPM
520 HP
720 RPM
5.13 RPM
430 HP
580 RPM
4.14 RPM
347 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

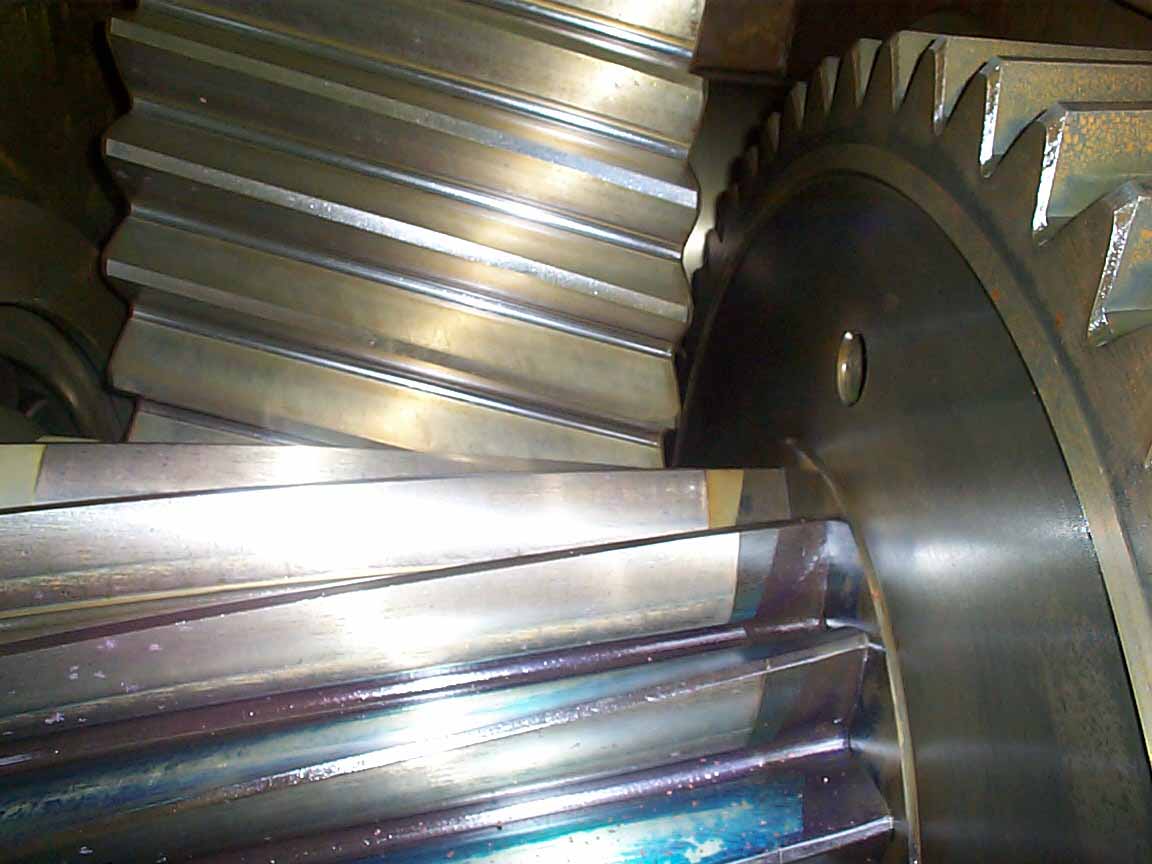

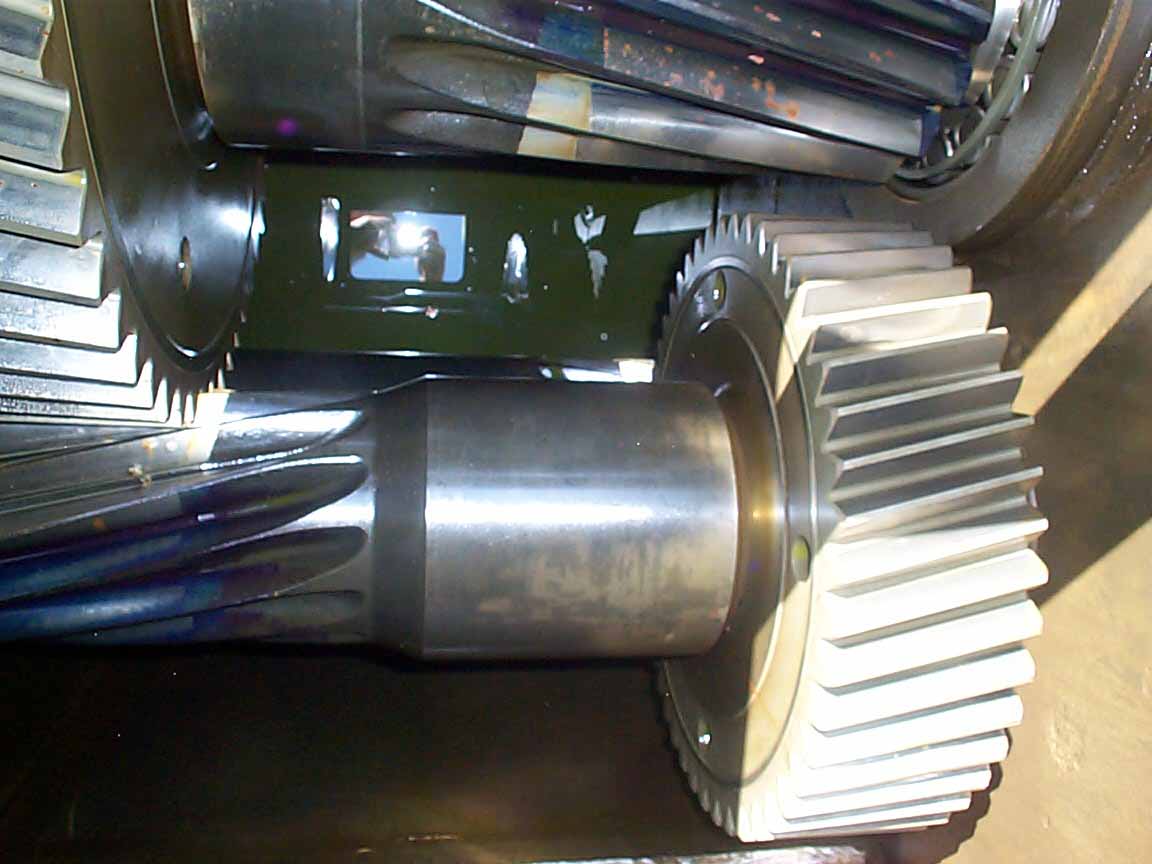

Click on images for larger view.
