- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005738
Model:      1060FCB3AS Ratio:      4.39:1
MO# or S/N      8-931051 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date      6/89 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      27,400 Lb-Inches Shaft Diameters High Speed:  1.8750
Low Speed:  3.0000
Weight      820 Lbs Approx. Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.39:1

399 RPM
85.2 HP
1430 RPM
325 RPM
74 HP
1170 RPM
266.5 RPM
64.3 HP
870 RPM
198 RPM
51.9 HP
720 RPM
164 RPM
43.5 HP
580 RPM
132 RPM
35.5 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

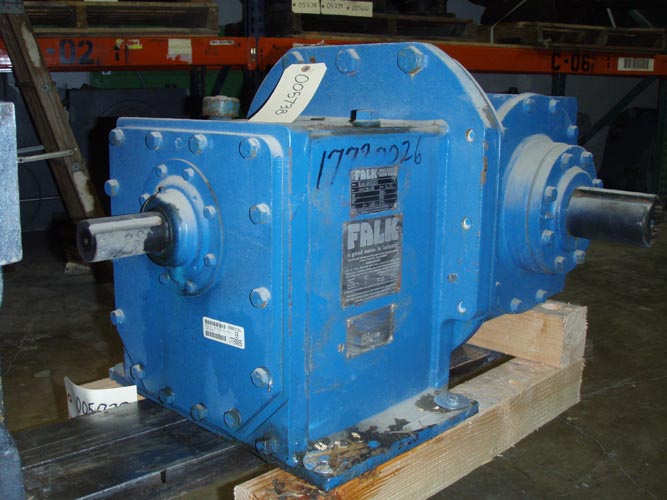

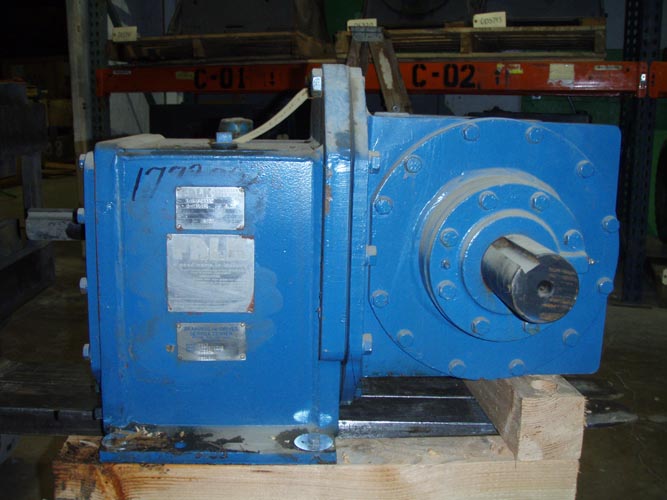

Click on images for larger view.
