SEW-EURODRIVE DATA SHEET

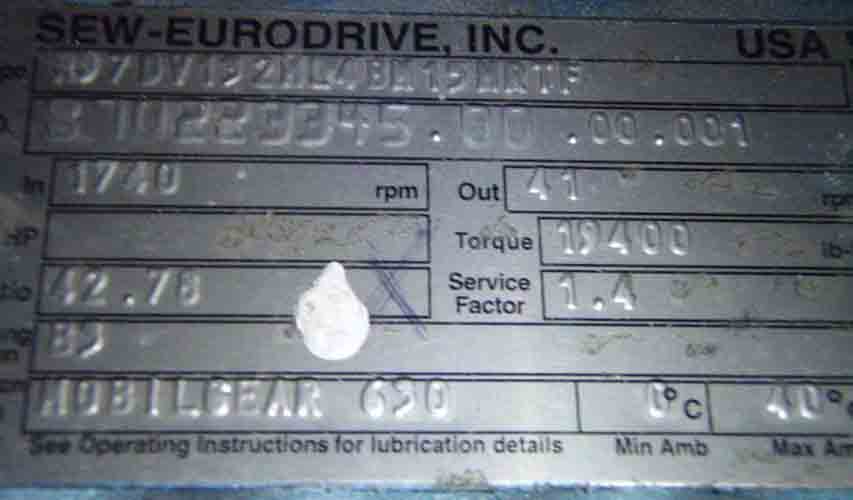

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R97DV132ML4BM15MRTF Our ID No.      005775
SO#      870223345.00.00.001
Input RPM      1740 RPM Output RPM      41 RPM
HP      12.5 HP Torque      19,400 lb-in
Ratio:      42.78:1 Service Factor      1.4 SF
Mounting Pos      B3
M O T O R       N A M E P L A T E       D A T A
TYPE:      DVF132ML4BM15MRTF Enclosure:      TEFC 3PH
SO#      870223345.00.00.001
Volts      277 / 480 HZ      60
Amps       39.5 / 17.11 Code      R Nom Eff       Conn Dia.      DT13
HP      12.5 HP S.F.      1.15 Duty      CONT Design Letter      B
RPM      1740 RPM Ins Class      F Max Amb      40
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  60mm (2.362")
Notes:
Condition: Unused
