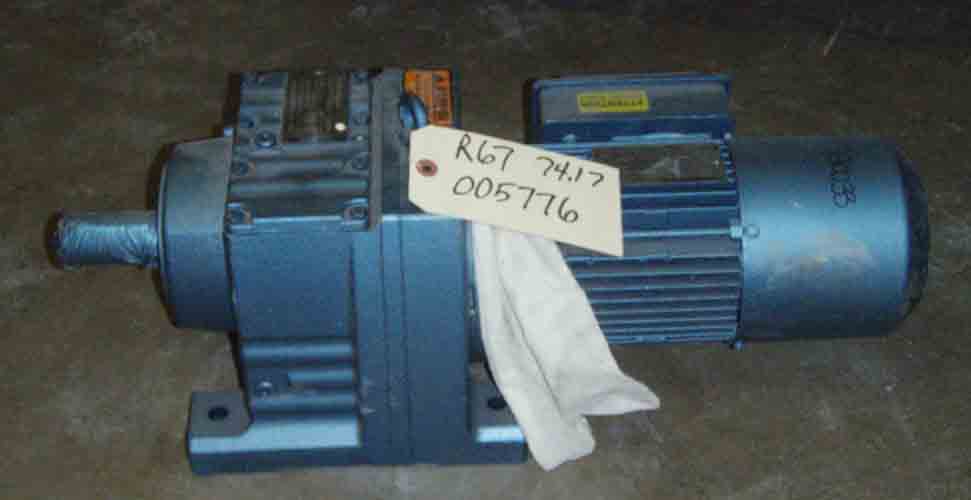

SEW-EURODRIVE DATA SHEET

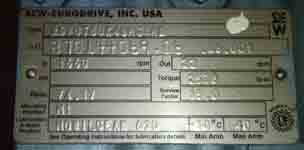

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R67 DT80K4BMG1HR Our ID No.      005776
SO#      870144069.06.06.001
Input RPM      1660 Output RPM      22
HP      .75 Torque      2,578 lb-in
Ratio:      74.17 Service Factor
Mounting Pos      M1
Lube       Min. Amb.       Max Amb
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT80K4BMG1HR Enclosure:      TEFC 3PH
SO#      870144069.06.06.001
Volts      277 / 480 HZ      60
Amps      2.55 / 1.47 Code      F Nom Eff       Conn Dia.      DT13
HP      .75 S.F.      1.15 Duty      CONT Design Letter      B
RPM      1660 Ins Class      F Max Amb
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  35mm (1.378 inch)
Notes:
Condition: New Surplus
