SEW-EURODRIVE DATA SHEET

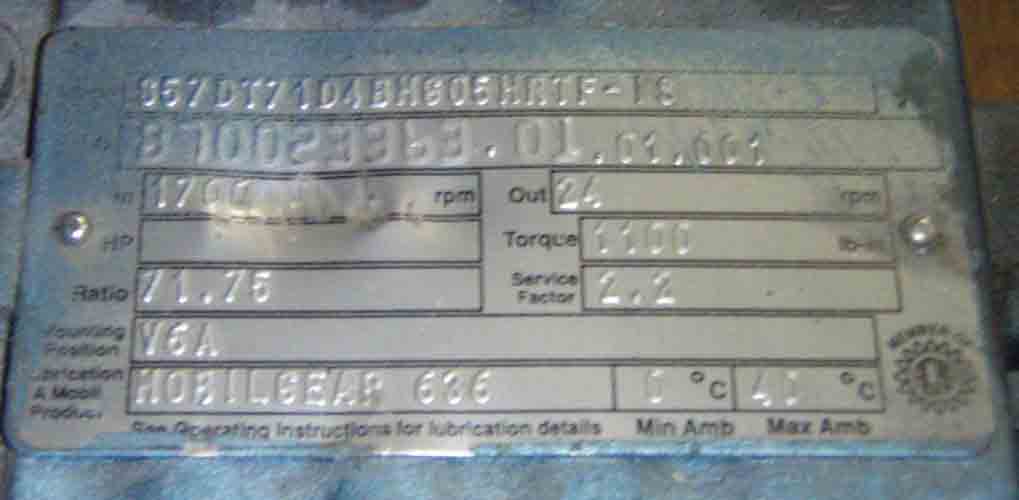

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      S57DT71D4BMG05HRTF/IS Our ID No.      005789
SO#      870023363.01.01.001
Input RPM      1700 Output RPM      24
HP       Torque      1,100 lb-in
Ratio:      71.75 Service Factor      2.2
Mounting Pos      V6A

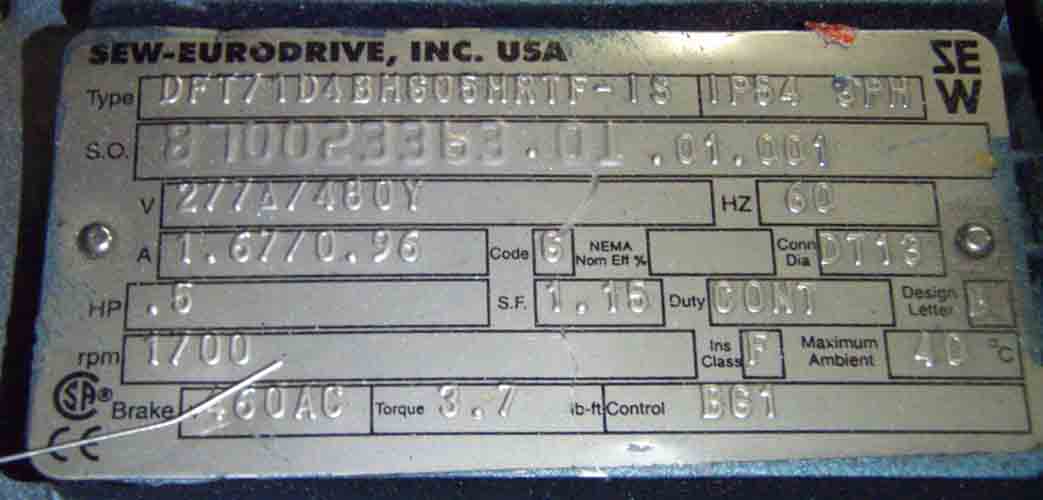

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT71D4BMG05HRTF/IS Enclosure:      IP 54 3PH
SO#      870023363.01.01.001
Volts      277 / 480 HZ      60
Amps      1.67 / 0.96 Code      G Nom Eff       Conn Dia.      DT13
HP      0.5 S.F.      1.15 Duty      CONT Design Letter      B
RPM      1700 Ins Class      F Max Amb      40
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  30mm (1.181 inch)
Notes:
Condition: Used Surplus



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
