Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

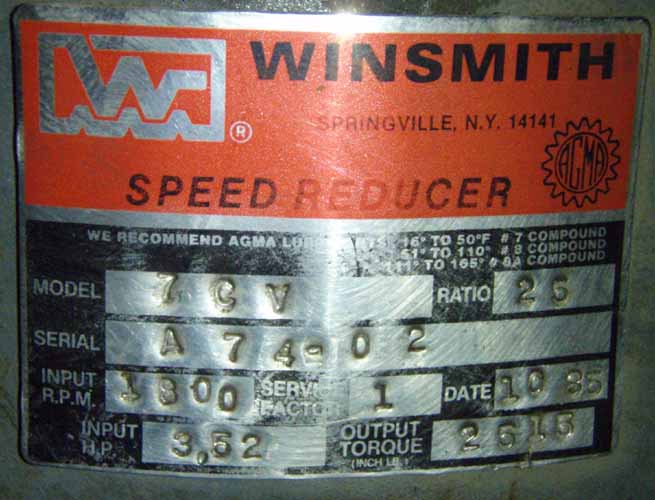

N A M E P L A T E       D A T A
Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      005836
Model:      7CV Ratio:      25
S/N      A74-02 Center Distance      4.0
IP Speed      1750 HP rating      3.52
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      2,615 Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  1.750
Weight      100 Lbs Approx. Assembly      RU
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25:1

72 RPM
3.52 HP
1170 RPM
48 RPM
2.96 HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

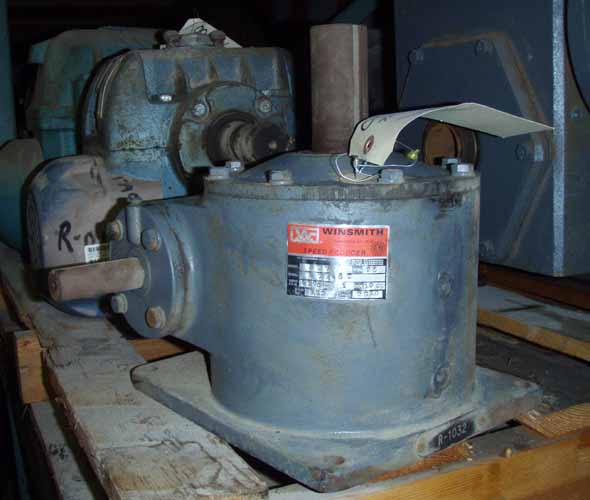

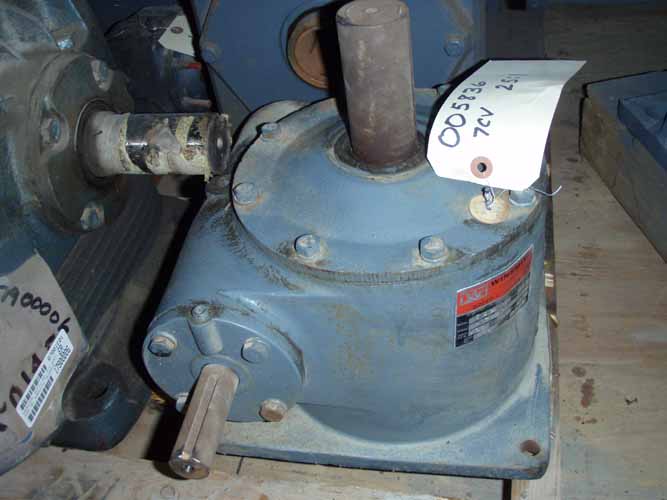

Click on images for larger view.
