- Speed Reducer Data Sheet -
HOME

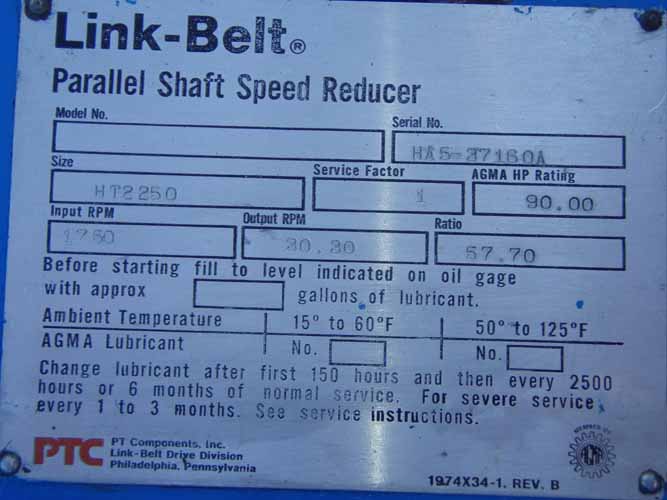

N A M E P L A T E       D A T A
Manufacturer:      LINKBELT Our ID No.      005874
Model:      HT2250 Ratio:      57.70:1
MO# or S/N      HA5-37160A Alt. S/N
IP Speed      1750 HP rating      90.0 Cat. Rating
OP Speed:      30.3 SF / SC      1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      187,100 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  5.500
Weight      2,600 Lbs Approx. Assembly      Assembly # 2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
57.70:1

30 RPM
90.0 HP
1430 RPM
25 RPM
75.5 HP
1170 RPM
20 RPM
61.0 HP
870 RPM
15 RPM
46.7 HP
580 RPM
10 RPM
32.0 HP
Notes:
Condition:


Unused Surplus
