Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      CONE DRIVE Our ID No.      005876
Model:       OV40-80Q1A-250      or
      OV78400C-19-250 		Ratio:      250:1
MO# or S/N      No Nameplate Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      82,000 Lb-Inches Shaft Diameters High Speed:  1.500
Low Speed:  3.500
Weight      1,050 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
250:1

7 RPM
12.6 HP
1170 RPM
4.7 RPM
8.88 HP
870 RPM
3.5 RPM
6.95 HP
580 RPM
2.3 RPM
4.79 HP
Notes:
Condition:
Used, Good


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

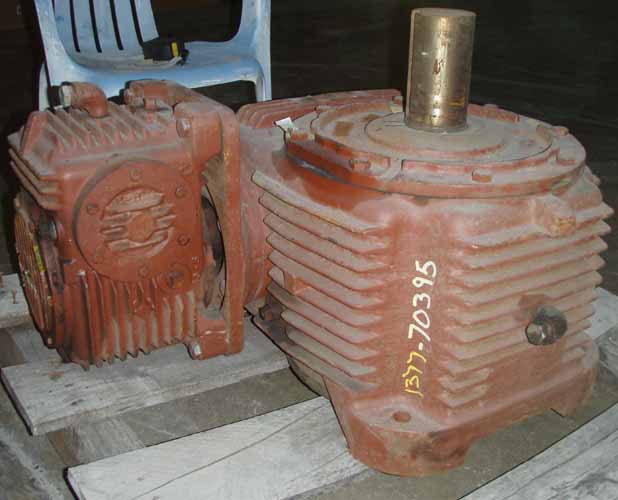

Click on images for larger view.
