- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FLENDER Our ID No.      005959
Model:      SDN450 Ratio:      60.686:1
MO# or S/N       Alt. S/N
IP Speed      1020 RPM HP rating      250 HP Cat. Rating      296 HP
OP Speed:      16.8 RPM SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      900,000 Lb-Inches Shaft Diameters High Speed:
Low Speed:
Weight      6,500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60.686:1

28 RPM
430 HP
1170 RPM
19 RPM
310 HP
870 RPM
14 RPM
235 HP
720 RPM
11 RPM
195 HP
Notes:
Condition:
Unused surplus

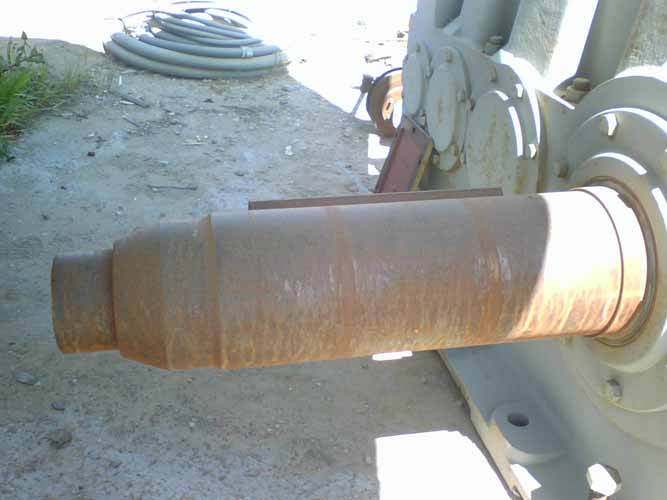

Longer then standard high speed and low speed shafts (no extra charge!)
