Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005973
Model:      345A1-AS 004 Ratio:      1.885
MO# or S/N      00-066338-01 Alt. S/N
IP Speed      1787 HP rating      600 Cat. Rating
OP Speed:      948 SF / SC      1.80
Date      05-00 Oil Capacity      5.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      57,100 Lb-Inches Shaft Diameters High Speed:  2.375
Low Speed:  3.500
Weight      850 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with cooling tubes
1750 RPM
1.885

950 RPM
841 HP
1116 HP
1430 RPM
780 RPM
687 HP
1049 HP
1170 RPM
640 RPM
562 HP
979 HP
870 RPM
470 RPM
418 HP
875 HP
720 RPM
390 RPM
346 HP
810 HP
580 RPM
320 RPM
279 HP
740 HP
Notes:
Condition:
Used Excellent Condition


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

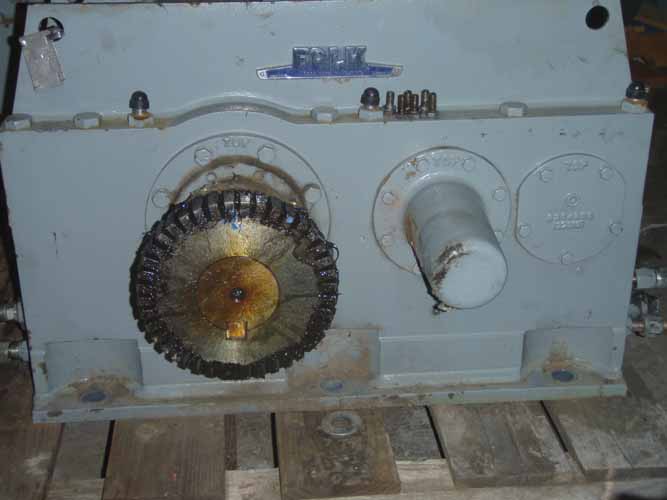

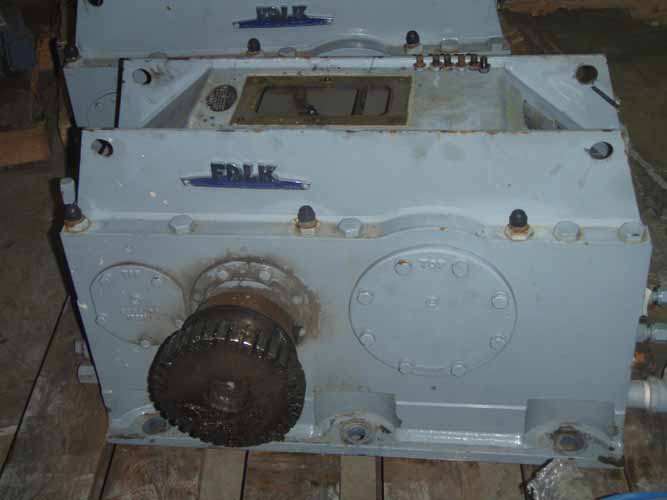

Click on images for larger view.
