- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005975
Model:      2050Y2-LB Ratio:      8.286
MO# or S/N      06-0R0656-02 Alt. S/N
IP Speed      1750 RPM HP rating      60 HP Cat. Rating
OP Speed:      211 RPM SF / SC      1.4 SF
Date      11-06 Oil Capacity      1.8
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      25,100 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.750
Weight      450 Lbs Approx. Assembly      18
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
8.286

210 RPM
84.1 HP
1430 RPM
170 RPM
70.9 HP
1170 RPM
140 RPM
59.7 HP
870 RPM
105 RPM
46.2 HP
720 RPM
85 RPM
39.1 HP
580 RPM
70 RPM
32.2 HP
Notes:
Condition: REBUILT GEARING LIKE NEW



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

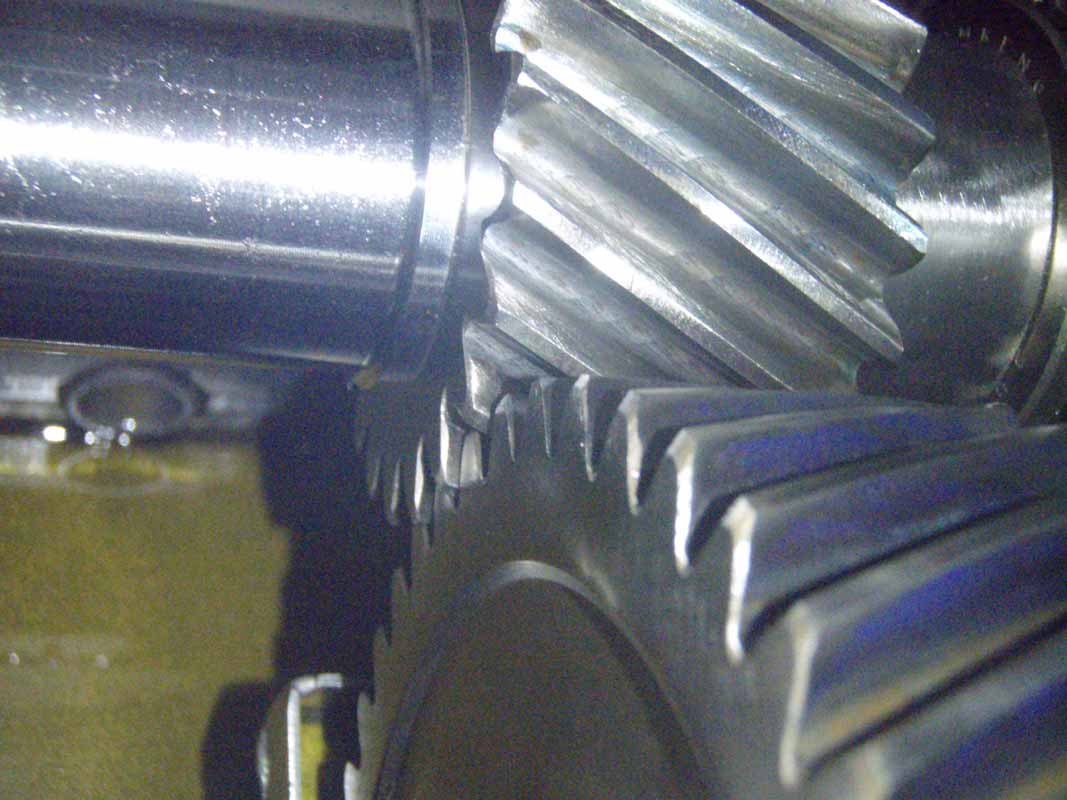

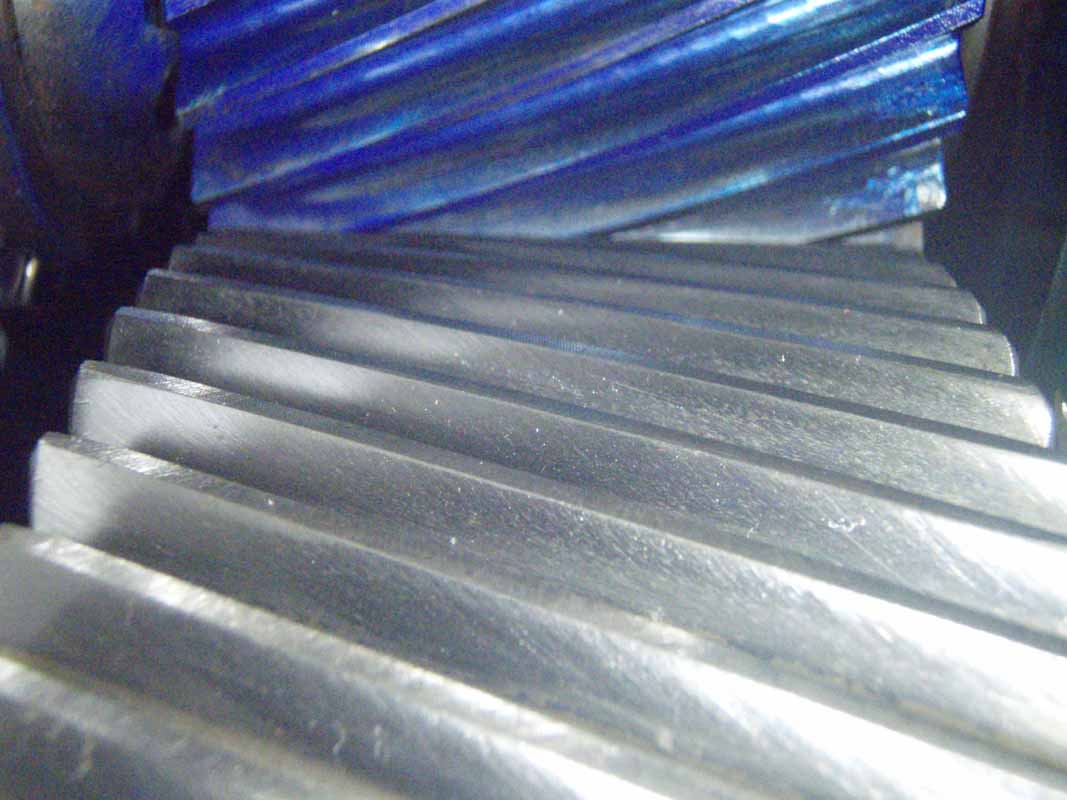

Click on images for larger view.
